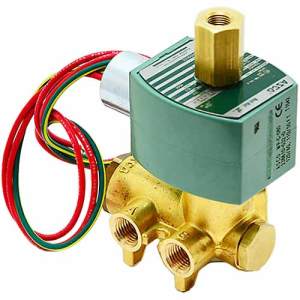

ASCO 8345G001 4-WAY 1/4" SOLENOID VALVE, 24 VDC

Brand:ASCO

MPN:8345G001 DC 24/DC D

SKU:8345G001 DC 24/DC D

List Price:

$937.00

Today's Price:

$425.00

Lead time of > 15 days. Chat with Kele experts now

product specifications

Body Material

Brass

Max Media Temperature

180 °F

Media Compatibility

Air,Water,Oil

Power Supply

DC Line Power

Type

Four Way

Valve Operation

Universal

Orifice Size

5/8 in

Solenoid Coil

238710-006-D*

Solenoid Kit

314455

Enclosure Rating

NEMA 1,NEMA 2,NEMA 3,NEMA 3S,NEMA 4,NEMA 4X

0.09 CV

Pipe Size

1/4 in

Wetted Materials

Brass, Buna N, Nylon

Pressure Range

10 - 150 PSI

Supply Voltage (Nominal)

24 VDC

Seal Material

Buna N, Nylon Elastomer

product series specifications

Valve Function: General Service

Solenoid Valve Type: Four Way

Operation: Single Solenoid

Body Material: Brass, Stainless Steel

Pipe Size: 1/4 Inch

Valve Media: Air-Inert Gas, Water-Clean Liquids, Light Oil

product series features

Available in 1/4" pipe size
Compact pilot-operated valve for general service applications
Low-cost four-way valve when low flow is sufficient
Mountable in any position for installation flexibility
Minimum operating pressure must be maintained between pressure and exhaust ports
CSA certified, UL listed as general purpose valve
Also available in intrinsically safe, voltage ranging, and long life models.

more information & related documents

Series Description

Four-way pilot operated solenoid valves. 1/4" pipe size, single solenoid. Brass or 316 stainless steel body. For general service and low flow air, inert gas, water or light oil applications.

Kele Description

ASCO 8345G001 4-WAY 1/4" SOLENOID VALVE, 24 VDC

Manufacturer

ASCO
