8345G001 AC 24/60 D | ASCO | Control Valves

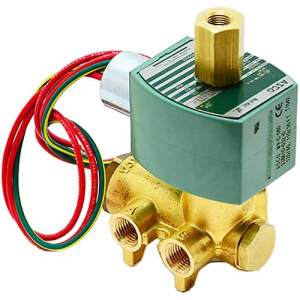

ASCO 8345G001 4-WAY 1/4" SOLENOID VALVE, 24 VAC/60HZ
Brand:ASCO
MPN:8345G001 AC 24/60 D
SKU:8345G001 AC 24/60 D
List Price:
$937.00
Today's Price:
$425.00
Log in for customized pricingproduct specifications
Body Material
Brass
Max Media Temperature
180 °F
Media Compatibility
Air,Water,Oil
Power Supply
AC Line Power
Type
Four Way
Valve Operation
Universal
Orifice Size
5/8 in
Solenoid Coil
238610-005-D*
Solenoid Kit
314453
Enclosure Rating
NEMA 1,NEMA 2,NEMA 3,NEMA 3S,NEMA 4,NEMA 4X
Cv
0.09 CV
Pipe Size
1/4 in
Wetted Materials
Brass, Buna N, Nylon
Pressure Range
10 - 150 PSI
Supply Voltage (Nominal)
24/60 VAC
Seal Material
Buna N, Nylon Elastomer
product series specifications
Valve Function: General Service
Solenoid Valve Type: Four Way
Operation: Single Solenoid
Body Material: Brass, Stainless Steel
Pipe Size: 1/4 Inch
Valve Media: Air-Inert Gas, Water-Clean Liquids, Light Oil
product series features
- Available in 1/4" pipe size
- Compact pilot-operated valve for general service applications
- Low-cost four-way valve when low flow is sufficient
- Mountable in any position for installation flexibility
- Minimum operating pressure must be maintained between pressure and exhaust ports
- CSA certified, UL listed as general purpose valve
- Also available in intrinsically safe, voltage ranging, and long life models.
more information & related documents
Series Description
Four-way pilot operated solenoid valves. 1/4" pipe size, single solenoid. Brass or 316 stainless steel body. For general service and low flow air, inert gas, water or light oil applications.
Kele Description
ASCO 8345G001 4-WAY 1/4" SOLENOID VALVE, 24 VAC/60HZ
Manufacturer
ASCO
ASCO Valve 8345 Four-Way General Service Solenoid Valve Specifications
