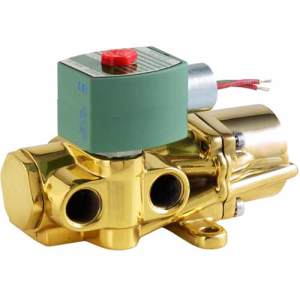

Shiny brass poppet valve with two circular ports, topped by a green rectangular solenoid housing with a red button and small wire leads.

8344G070 DC 24/DC D | ASCO | Control Valves

Name: 8344G070 DC 24/DC D
Brand: ASCO
SKU: 8344G070 DC 24/DC D
Price: 960 USD
Availability: InStock

ASCO 8344G070 4-WAY 1/4" SOLENOID VALVE, 24 VDC

Brand:ASCO

MPN:8344G070 DC 24/DC D

SKU:8344G070 DC 24/DC D

List Price:

$1,846.15

Today's Price:

$960.00

product specifications

Max Media Temperature

150 °F

Media Compatibility

Air-Inert Gas,Light Oil,Water

Power Supply

DC Line Power

Type

Four Way

Connection

NPT

Sensor Type

Four Way

Valve Operation

Universal

Orifice Size

1/4 in

Solenoid Coil

238710-006-D

Solenoid Kit

302731

Enclosure Rating

NEMA 1,NEMA 2,NEMA 3,NEMA 3S,NEMA 4,NEMA 4X

Body Material

Brass

Approvals

CE,CSA

0.8

Pipe Size

1/4 in

Wetted Materials

Brass, Buna N

Pressure Range

10 - 125 PSI

Supply Voltage (Nominal)

24 VDC

Function

High Flow

Seal Material

Buna N

product series specifications

Valve Function: General Service

Solenoid Valve Type: Four Way

Operation: Single Solenoid, Dual Solenoid

Body Material: Brass

Pipe Size: 1/4 Inch, 3/8 Inch, 1/2 Inch, 3/4 Inch, 1 Inch

Valve Media: Air-Inert Gas, Water-Clean Liquids, Light Oil

product series features

Available in 1/4" to 1" pipe sizes, single or dual solenoid construction
Piston-operated poppet design for high flow applications
Sturdy, robust construction can be used with air, water or light oils (@300 SSU)
Valves are mountable in any position for installation flexiblity
Dual solenoid can be shifted with a momentary signal, and remain in position even at power loss
Also available in low power, intrinsically safe, voltage ranging, and long life models. Call Lesman's factory-trained ASCO specialists for help

more information & related documents

Series Description

Four-way pilot operated solenoid valves. 1/4" to 1" pipe sizes, single or dual solenoids. Brass body. For air, inert gas, water or light oil use in analytical and diagnostic instruments, biofuels, heating equipment, life science production, and refining.

Kele Description

ASCO 8344G070 4-WAY 1/4" SOLENOID VALVE, 24 VDC

Manufacturer

ASCO
