8342G703 AC 120/60 D | ASCO | Control Valves

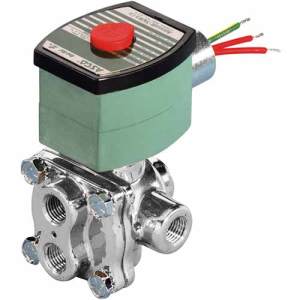

ASCO 8342G703 4-WAY 3/8" SOLENOID VALVE, 120 VAC/60 HZ
Brand:ASCO
MPN:8342G703 AC 120/60 D
SKU:8342G703 AC 120/60 D
List Price:
$3,142.00
Today's Price:
$1,426.00
Log in for customized pricingproduct specifications
Body Material
Stainless Steel
Max Media Temperature
160 °F
Media Compatibility
Air-Inert Gas,Water,Light Oil
Power Supply
AC Line Power
Type
Four Way
Valve Operation
Universal
Orifice Size
3/16 in
Solenoid Coil
272610-132-D*
Solenoid Kit
310189
Enclosure Rating
NEMA 1,NEMA 2,NEMA 3,NEMA 3S,NEMA 4,NEMA 4X
Cv
0.7 CV
Pipe Size
3/8 in
Wetted Materials
Stainless Steel, PTFE
Pressure Range
Air/Inert Gas: 0 - 125 PSI; Water: 0 - 200 PSI; Oil: 0 - 100 PSI
Supply Voltage (Nominal)
120/60 VAC
Seal Material
PTFE Elastomer
product series specifications
Valve Function: General Service, Pilot Valve
Solenoid Valve Type: Four Way
Operation: Single Solenoid, Dual Solenoid, NAMUR Mount
Body Material: Brass, Stainless Steel
Pipe Size: 1/4 Inch, 3/8 Inch
Valve Media: Air-Inert Gas, Water-Clean Liquids, Light Oil
product series features
- Available in 1/4" and 3/8" pipe sizes, single or dual solenoid construction
- Direct acting, high flow side-style valve
- Flow control option regulates cylinder speed independently in either direction
- No minimum operating pressure required to shift valve
- NAMUR mount pilot valve model available in single or dual solenoid, brass or 304 stainless steel construction, for air/inert gas use only
more information & related documents
Series Description
Four-way direct-acting solenoid valves. 1/4" and 3/8" pipe sizes, in-line single or dual solenoids. Brass or stainless steel body. For general service air, inert gas, water or light oil use or pilot control applications.
Kele Description
ASCO 8342G703 4-WAY 3/8" SOLENOID VALVE, 120 VAC/60 HZ
Manufacturer
ASCO
ASCO Valve 8342 Four-Way General Service Solenoid Valve Specifications
