8340G001 DC 24/DC D | ASCO | Control Valves

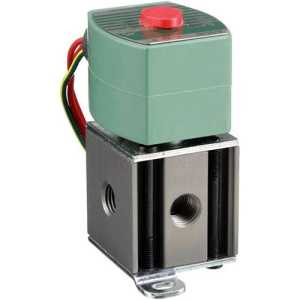

ASCO 8340G001 4-WAY 1/4" SOLENOID VALVE, 24 VDC
Brand:ASCO
MPN:8340G001 DC 24/DC D
SKU:8340G001 DC 24/DC D
List Price:
$2,909.62
Today's Price:
$1,513.00
Log in for customized pricingproduct specifications
Max Media Temperature
130 °F
Media Compatibility
Air-Inert Gas
Power Supply
DC Line Power
Type
Four Way
Orifice Size
5/64 in
Solenoid Coil
238710-106-D*
Solenoid Kit
302759
Enclosure Rating
NEMA 1,NEMA 2,NEMA 3,NEMA 3S,NEMA 4,NEMA 4X
Body Material
Aluminum
Cv
0.1
Pipe Size
1/4 in
Wetted Materials
Aluminum, Polyethylene
Pressure Range
0 - 150 PSI
Supply Voltage (Nominal)
24 VDC
Seal Material
Polyethylene Elastomer
product series specifications
Valve Function: Air Operated
Solenoid Valve Type: Four Way
Operation: Single Solenoid
Body Material Aluminum
Pipe Size: 1/4 Inch
Valve Media: Air-Inert Gas
product series features
- Available in 1/4" pipe size, inline, sub-base, or manifold mount constructions
- Air-only design for cylinder control
- Aluminum body valve for air, inert gas
- Includes one pressure port, one exhaust port, and two cylinder ports
- Manifold up to eight single and dual solenoid valves in any combination
- No minimum operating pressure required
more information & related documents
Series Description
Four-way direct-acting air-only solenoid valves. 1/4" pipe size, in-line solenoid. Aluminum body. For cylinder control applications.
Kele Description
ASCO 8340G001 4-WAY 1/4" SOLENOID VALVE, 24 VDC
Manufacturer
ASCO
Related Documents
ASCO Valve 8340 Four-Way Air-Only Solenoid Valve Specifications
