8320G001MS AC 24/60 D | ASCO | Control Valves

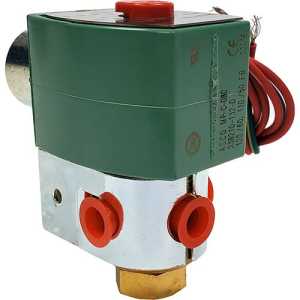

ASCO 8320G001MS 3-WAY UNIV 1/8" SOLENOID VALVE, 24 VAC/60HZ
Brand:ASCO
MPN:8320G001MS AC 24/60 D
SKU:8320G001MS AC 24/60 D
List Price:
$455.00
Today's Price:
$206.40
Log in for customized pricingproduct specifications
Body Material
Brass
Max Media Temperature
180 °F
Media Compatibility
Air-Inert Gas,Water,Light Oil
Power Supply
AC Line Power
Type
Three Way
Valve Operation
Universal
Orifice Size
5/8 in
Enclosure Rating
NEMA 1,NEMA 2,NEMA 3,NEMA 3S,NEMA 4,NEMA 4X
Cv
0.09 CV
Pipe Size
1/8 in
Wetted Materials
Brass, Buna N
Pressure Range
0 - 100 PSI
Supply Voltage (Nominal)
120/60 VAC
Seal Material
Buna N Elastomer
product series specifications
SIL-Rated: Yes
Valve Function: General Service
Solenoid Valve Type: Three Way
Operation: Normally Open, Normally Closed, Universal
Body Material: Brass, Stainless Steel
Pipe Size: 1/8 Inch, 1/4 Inch
product series features
- Available in 1/8" and 1/4" pipe sizes, normally closed, normally open, or universal operation
- Direct-acting brass or stainless steel body valve for air, inert gas, water, and light oils to 300 SSU, with max fluid temperatures to 200°F
- All NPT connections are in the valve body to allow for in-line piping
- No minimum operating pressure differential required
- CSA certified, UL listed general purpose valves, meets all CE directives; ATEX/IECEx certified optional
- SIL-3 capable per IEC 61508 on normally closed constructions, EXIDA certified
- Mountable in any position
- Also available with direct NAMUR mount for spring-return actuators. Call for pricing and delivery.
more information & related documents
Series Description
Three-way direct-acting solenoid valves. 1/8" and 1/4" pipe size. Normally closed, normally open, or universal operation. Brass or 303 stainless steel body. Fits a broad range of industrial applications.
Kele Description
ASCO 8320G001MS 3-WAY UNIV 1/8" SOLENOID VALVE, 24 VAC/60HZ
Manufacturer
ASCO
