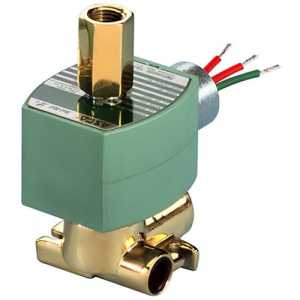

small brass solenoid valve with a green box‑shaped coil and multicolored leads

8317G035 AC 120/60,110/50 D | ASCO | Control Valves

ASCO 8317G035 3-WAY N/C 1/4" SOLENOID VALVE, 120/60, 110/50 VAC

Brand:ASCO

MPN:8317G035 AC 120/60,110/50 D

SKU:8317G035 AC 120/60,110/50 D

List Price:

$756.00

Today's Price:

$343.00

Lead time of > 15 days. Chat with Kele experts now

product specifications

Max Media Temperature

180 °F

Media Compatibility

Air-Inert Gas,Water,Light Oil

Power Supply

AC Line Power

Type

Three Way

Valve Operation

Normally Closed

Orifice Size

3/32 in

Solenoid Coil

238610-032-D*

Solenoid Kit

314463

Enclosure Rating

NEMA 1,NEMA 2,NEMA 3,NEMA 3S,NEMA 4,NEMA 4X

Body Material

Brass

0.2 (Pressure), 0.73 (Exhaust)

Pipe Size

1/4 in

Wetted Materials

Brass, Buna-N

Pressure Range

Air/Inert Gas, Water: 5 - 150 PSI; Oil: 5 - 95 PSI

Supply Voltage (Nominal)

120/60 VAC,110/50 VAC

Seal Material

Buna N Elastomer

product series specifications

Valve Function: General Service

Solenoid Valve Type: Three Way

Operation: Normally Open, Normally Closed

Body Material: Brass, Stainless Steel

Pipe Size: 1/4 Inch, 3/8 Inch

Valve Media: Air-Inert Gas, Water-Clean Liquids, Light Oil

product series features

Available in 1/4" or 3/8" pipe sizes, normally closed or normally open operation
Pilot-operated brass or stainless steel body valve for air, inert gas, and water with max fluid temperatures to 180°F
Designed for quick venting to 0 psi through the exhaust orifice
Resilient-seated poppets for tight shutoff
Air exhausted to quickly shift control valves
CSA certified, UL listed general purpose valves, meets all CE directives. Optional ATEX/IECEx approvals
Mountable in any position
Minimum operating pressure differential must be maintained between pressure and exhaust ports
Supply and exhaust piping must be full area, unrestricted
Flow controls and similar components must be installed in cylider lines only

more information & related documents

Series Description

Three-way pilot-operated quick exhaust solenoid valves. 1/4" and 3/8" pipe size. Normally closed or normally open operation. Brass or 304 stainless steel body. Fits a wide variety of industrial applications.

Kele Description

ASCO 8317G035 3-WAY N/C 1/4" SOLENOID VALVE, 120/60, 110/50 VAC

Manufacturer

ASCO
