8316P064 12-24/DC | ASCO | Control Valves

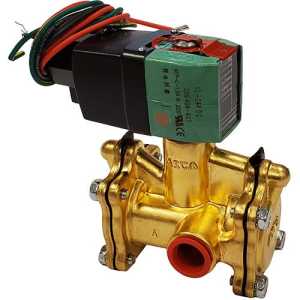

ASCO 8316P064 3-WAY N/C 1/2" SOLENOID VALVE, 12-24 VDC
Brand:ASCO
MPN:8316P064 12-24/DC
SKU:8316P064 12-24/DC
List Price:
$1,384.62
Today's Price:
$720.00
Log in for customized pricingproduct specifications
Max Media Temperature
180 °F
Media Compatibility
Air-Inert Gas,Water
Power Supply
AC Line Power,DC Line Power
Type
Three Way
Connection
NPT
Sensor Type
Three Way
Valve Operation
Normally Closed
Orifice Size
5/8 in
Solenoid Coil
250404-607
Solenoid Kit
322690
Enclosure Rating
NEMA 1,NEMA 2,NEMA 3,NEMA 3S,NEMA 4,NEMA 4X
Body Material
Brass
Approvals
CE,CSA,UL
Cv
3.2
Pipe Size
1/2 in
Wetted Materials
Brass, Buna N
Pressure Range
10 - 250 PSI
Supply Voltage (Nominal)
24 VAC,24 VDC
Function
Air and Water Service
Seal Material
Buna N
product series specifications
Valve Function: General Service
Solenoid Valve Type: Three Way
Operation: Normally Open, Normally Closed
Body Material: Brass
Pipe Size: 3/8 Inch, 1/2 Inch, 3/4 Inch, 1 Inch
Valve Media: Air-Inert Gas, Water-Clean Liquids
product series features
- Available in 3/8" to 1" pipe sizes, normally closed or normally open operation
- Diaphragm poppet brass body valve for controlling air, inert gas, and liquids with max fluid temperatures to 180°F
- For operating pressure differential from 10 to 250 psi
- Internal piloting controls large orifices to provide high flows
- Can be used to pilot large actuators for quick closure of large control valves
- Resilient seating for tight shutoff
- CSA certified, meets all CE directives. Optional ATEX/IECEx approvals
- Mountable in any position
- Minimum operating pressure differential must be maintained between pressure and exhaust ports
- Supply and exhaust piping must be full area, unrestricted
- Flow controls and similar components must be installed in cylider lines only
more information & related documents
Series Description
Three-way pilot-operated diaphragm solenoid valves. 1/8" to 1/4" pipe size. Normally closed or normally open operation. Brass body. For high flow applications.
Kele Description
ASCO 8316P064 3-WAY N/C 1/2" SOLENOID VALVE, 12-24 VDC
Manufacturer
ASCO
ASCO Valve 8316 Air and Water Three-Way Solenoid Valve Specifications
