8314H036 DC 24/DC D | ASCO | Control Valves

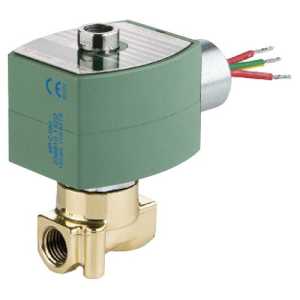

ASCO 8314H036 3-WAY N/C 1/4" SOLENOID VALVE, 24 VDC
Brand:ASCO
MPN:8314H036 DC 24/DC D
SKU:8314H036 DC 24/DC D
List Price:
$473.08
Today's Price:
$246.00
Log in for customized pricingproduct specifications
Max Media Temperature
200 °F
Media Compatibility
Air-Inert Gas,Light Oil,Water
Power Supply
DC Line Power
Type
Three Way
Connection
NPT
Sensor Type
Three Way
Valve Operation
Normally Closed
Orifice Size
1/8 in
Solenoid Coil
238710-006-D
Solenoid Kit
323954
Enclosure Rating
NEMA 1,NEMA 2,NEMA 3,NEMA 3S,NEMA 4,NEMA 4X
Is SIL
true
Body Material
Brass
Approvals
CE,CSA,UL,SIL3
Cv
0.25
Pipe Size
1/4 in
Wetted Materials
Brass, Buna N, Nylon
Pressure Range
Air/Inert Gas: 0 - 90 PSI; Water, Oil: 0 - 70 PSI
Supply Voltage (Nominal)
24 VDC
Function
General Service
Seal Material
Buna N
product series specifications
Valve Function: General Service
Solenoid Valve Type: Three Way
Operation: Normally Open, Normally Closed, Universal
Body Material: Brass, Stainless Steel
Pipe Size: 1/8 Inch, 1/4 Inch
Valve Media: Air-Inert Gas, Water-Clean Liquids, Light Oil
product series features
- Available in 1/8" to 1/4" pipe sizes, normally closed, normally open, or universal operation
- For air/inert gas, water, light oil with maximum fluid temperature 200°F
- No minimum operating pressure required
- High-speed general service for basic three-way pilot operation
- Use when the exhaust flow needs to be directed through the top of the solenoid valve
- Can be used for low-volume fluid diversion
more information & related documents
Series Description
Three-way direct-acting poppet solenoid valves. 1/8" to 1/4" pipe size. Normally closed, normally open, or universal operation. Brass or stainless steel bodies. For applications that demand high cycles with moderate flow.
Kele Description
ASCO 8314H036 3-WAY N/C 1/4" SOLENOID VALVE, 24 VDC
Manufacturer
ASCO
ASCO Valve 8314 Three-Way General Service Solenoid Valve Specifications
