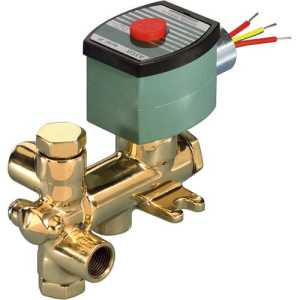

Polished brass solenoid valve with a cross-style body, topped by a green coil housing with red button and attached colored wires

8300D061F AC 120/60 D | ASCO | Control Valves

ASCO 8300D061F 3-WAY N/C 1/4" SOLENOID VALVE, 120/60 VAC

Brand:ASCO

MPN:8300D061F AC 120/60 D

SKU:8300D061F AC 120/60 D

List Price:

$3,675.00

Today's Price:

$1,668.00

Lead time of > 15 days. Chat with Kele experts now

product specifications

Max Media Temperature

200 °F

Media Compatibility

Air-Inert Gas,Water,Oil

Power Supply

AC Line Power

Type

Three Way

Orifice Size

1/4 in

Solenoid Coil

222345-005-D*

Solenoid Kit

306682-F

Enclosure Rating

NEMA 1,NEMA 2,NEMA 3,NEMA 3S,NEMA 4,NEMA 4X

Body Material

Brass

0.45 CV

Pipe Size

1/4 in

Wetted Materials

Brass, Buna N, Phosphor Bronze

Pressure Range

10 - 250 PSI

Supply Voltage (Nominal)

120/60 VAC

Seal Material

Buna N Elastomer, Phosphor Bronze

product series specifications

Valve Function: General Service

Solenoid Valve Type: Three Way

Operation: Normally Open, Normally Closed, Universal

Body Material: Brass, Stainless Steel

Pipe Size: 1/8 Inch, 1/4 Inch, 3/8 Inch, 1/2 Inch

Valve Media: Air-Inert Gas, Water-Clean Liquids, Light Oil

product series features

Available in 1/8" to 1/2" pipe sizes, normally closed, normally open, or universal operation
For air/inert gas, water, light oil with maximum fluid temperature 200F
Three pipe connections and two orifices
Direct acting; requires no minimum operating pressure
Choose metal seats and discs (standard) to handle aggressive fluids
Choose resilient NBR seats and brass discs for airtight shutoff
Ideal for applications in power plants; commonly used to apply pressure to an exhaust from a valve actuator or single-acting cylinder

more information & related documents

Series Description

Three-way direct-acting general service solenoid valves. 1/8" to 1/2" pipe size. Normally closed, normally open, or universal operation. Brass or stainless steel bodies with metal seats and discs (standard). For high flow and high pressure operations with air, inert gas, water, or light oil.

Kele Description

ASCO 8300D061F 3-WAY N/C 1/4" SOLENOID VALVE, 120/60 VAC

Manufacturer

ASCO
