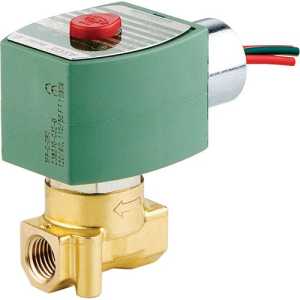

Compact brass solenoid valve featuring a green square actuator with a red cap and multicolored wires extending from one end

8263H206 AC 120/60,110/50 D | ASCO | Control Valves

Name: 8263H206 AC 120/60,110/50 D
Brand: ASCO
SKU: 8263H206 AC 120/60,110/50 D
Price: 223 USD
Availability: InStock

ASCO 8263H206 2-WAY N/C 3/8" SOLENOID VALVE, 120/60, 110/50 VAC

Brand:ASCO

MPN:8263H206 AC 120/60,110/50 D

SKU:8263H206 AC 120/60,110/50 D

List Price:

$428.85

Today's Price:

$223.00

product specifications

Max Media Temperature

180 °F

Media Compatibility

Air-Inert Gas,Light Oil,Water

Power Supply

AC Line Power

Type

Two Way

Connection

NPT

Sensor Type

Two Way

Valve Operation

Normally Closed

Orifice Size

7/32 in

Solenoid Coil

238610-132-D

Solenoid Kit

323593

Enclosure Rating

NEMA 1,NEMA 2,NEMA 3,NEMA 3S,NEMA 4,NEMA 4X

Body Material

Brass

Approvals

CE,CSA,UL

0.73

Pipe Size

3/8 in

Wetted Materials

Brass, Ureth

Pressure Range

Air/Inert Gas: 0 - 125 PSI; Water/Oil: 0 - 100 PSI

Supply Voltage (Nominal)

110/50 VAC,120/60 VAC

Function

General Service

Seal Material

Ureth

product series specifications

Valve Function: Air or Inert Gas, Cryogenic, General Service, Hot Water, Steam Service

Solenoid Valve Type: Two Way

Operation: Normally Open, Normally Closed

Body Material: Brass, Stainless Steel

Pipe Size: 1/8 Inch, 1/4 Inch, 3/8 Inch

Valve Media: Air-Inert Gas, Water-Clean Liquids, Light Oil, Steam

product series features

Available in 1/8" to 3/8" pipe sizes
Reliable, proven design for high flows
Small poppet valves for tight shutoff
Mountable in any position
Tapped mounting hole in body
Cryogenic, liquid CO2 valves also available
Look for the ◊ for models available in lead-free brass construction for compliance to Safe Drinking Water Act

more information & related documents

Series Description

Two-way direct acting solenoid valves. 1/8" to 3/8" pipe sizes. Normally closed or normally open general service or hot water/steam valves. Brass and stainless steel constructions. For air, inert gas, water, light oil (to 300 SSU). 8263 also available for steam and hot water service.

Kele Description

ASCO 8263H206 2-WAY N/C 3/8" SOLENOID VALVE, 120/60, 110/50 VAC

Manufacturer

ASCO
