8262H022 DC 24/DC D | ASCO | Control Valves

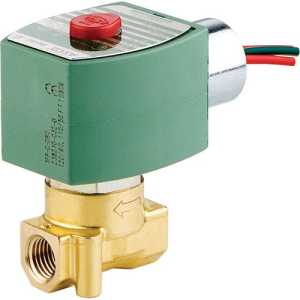

ASCO 8262H022 2-WAY N/C 1/4" SOLENOID VALVE, 24 VDC
Brand:ASCO
MPN:8262H022 DC 24/DC D
SKU:8262H022 DC 24/DC D
List Price:
$205.00
Today's Price:
$93.00
Log in for customized pricingproduct specifications
Body Material
Brass
Max Media Temperature
180 °F
Media Compatibility
Air-Inert Gas,Water,Light Oil
Power Supply
DC Line Power
Type
Two Way
Valve Operation
Normally Closed
Orifice Size
1/8 in
Solenoid Coil
238310-006-D*
Solenoid Kit
323587
Enclosure Rating
NEMA 1,NEMA 2,NEMA 3,NEMA 3S,NEMA 4,NEMA 4X
Cv
0.35 CV
Pipe Size
1/4 in
Wetted Materials
Brass, Buna N
Pressure Range
Air/Inert Gas: 0 - 140 PSI; Water: 0 - 165 PSI; Oil: 0 - 90 PSI
Supply Voltage (Nominal)
24 VDC
Seal Material
Buna N Elastomer
product series specifications
Valve Function: Air or Inert Gas, Cryogenic, General Service, Hot Water, Steam Service
Solenoid Valve Type: Two Way
Operation: Normally Open, Normally Closed
Body Material: Brass, Stainless Steel
Pipe Size: 1/8 Inch, 1/4 Inch, 3/8 Inch
Valve Media: Air-Inert Gas, Water-Clean Liquids, Light Oil, Steam
product series features
- Available in 1/8" to 3/8" pipe sizes
- Reliable, proven design for high flows
- Small poppet valves for tight shutoff
- Mountable in any position
- Tapped mounting hole in body
- Cryogenic, liquid CO2 valves also available
- Look for the ◊ for models available in lead-free brass construction for compliance to Safe Drinking Water Act
more information & related documents
Series Description
Two-way direct acting solenoid valves. 1/8" to 3/8" pipe sizes. Normally closed or normally open general service or hot water/steam valves. Brass and stainless steel constructions. For air, inert gas, water, light oil (to 300 SSU). 8263 also available for steam and hot water service.
Kele Description
ASCO 8262H022 2-WAY N/C 1/4" SOLENOID VALVE, 24 VDC
Manufacturer
ASCO
Related Documents
ASCO Hot Water and Steam Service Solenoid Valve Specifications
