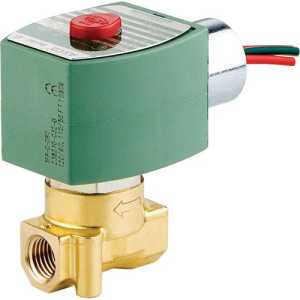

Compact brass solenoid valve featuring a green square actuator with a red cap and multicolored wires extending from one end

8262H014 AC 120/60,110/50 D | ASCO | Control Valves

Name: 8262H014 AC 120/60,110/50 D
Brand: ASCO
SKU: 8262H014 AC 120/60,110/50 D
Price: 85 USD
Availability: InStock

ASCO 8262H014 2-WAY N/C 1/8" SOLENOID VALVE, 120/60, 110/50 VAC

Brand:ASCO

MPN:8262H014 AC 120/60,110/50 D

SKU:8262H014 AC 120/60,110/50 D

List Price:

$163.46

Today's Price:

$85.00

product specifications

Approvals

CE,CSA,UL

Body Material

Brass

Connection

NPT

0.21

Enclosure Rating

NEMA 1,NEMA 2,NEMA 3,NEMA 3S,NEMA 4,NEMA 4X

Function

General Service

Max Media Temperature

180 °F

Media Compatibility

Air-Inert Gas,Light Oil,Water

Orifice Size

3/32 in

Pipe Size

1/8 in

Power Supply

AC Line Power

Pressure Range

Air/Inert Gas: 0 - 235 PSI; Water, Oil: 0 - 160 PSI

Seal Material

Buna N

Sensor Type

Two Way

Solenoid Coil

238210-032-D

Solenoid Kit

323581

Supply Voltage (Nominal)

110/50 VAC,120/60 VAC

Type

Two Way

Valve Operation

Normally Closed

Wetted Materials

Brass, Buna N

product series specifications

Valve Function: Air or Inert Gas, Cryogenic, General Service, Hot Water, Steam Service

Solenoid Valve Type: Two Way

Operation: Normally Open, Normally Closed

Body Material: Brass, Stainless Steel

Pipe Size: 1/8 Inch, 1/4 Inch, 3/8 Inch

Valve Media: Air-Inert Gas, Water-Clean Liquids, Light Oil, Steam

product series features

Available in 1/8" to 3/8" pipe sizes
Reliable, proven design for high flows
Small poppet valves for tight shutoff
Mountable in any position
Tapped mounting hole in body
Cryogenic, liquid CO2 valves also available
Look for the ◊ for models available in lead-free brass construction for compliance to Safe Drinking Water Act

more information & related documents

Series Description

Two-way direct acting solenoid valves. 1/8" to 3/8" pipe sizes. Normally closed or normally open general service or hot water/steam valves. Brass and stainless steel constructions. For air, inert gas, water, light oil (to 300 SSU). 8263 also available for steam and hot water service.

Kele Description

ASCO 8262H014 2-WAY N/C 1/8" SOLENOID VALVE, 120/60, 110/50 VAC

Manufacturer

ASCO
