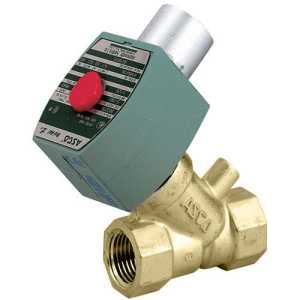

Angled brass Y-shape valve with a tilted green coil housing and red knob used for steam control.

8222G005 AC 120/60,110/50 D | ASCO | Control Valves

ASCO 8222G005 2-WAY N/C 3/4" STEAM SOLENOID VALVE, 120/60, 110/50 VAC

Brand:ASCO

MPN:8222G005 AC 120/60,110/50 D

SKU:8222G005 AC 120/60,110/50 D

List Price:

$1,258.00

Today's Price:

$571.00

Lead time of > 15 days. Chat with Kele experts now

product specifications

Body Material

Brass

Max Media Temperature

388 °F

Media Compatibility

Steam

Power Supply

AC Line Power

Type

Two Way

Valve Operation

Normally Closed

Orifice Size

1/2 in

Solenoid Coil

238810-032-D*

Solenoid Kit

304033

Enclosure Rating

NEMA 1,NEMA 2,NEMA 3,NEMA 3S,NEMA 4,NEMA 4X

4.6 CV

Pipe Size

3/4 in

Wetted Materials

Brass, Teflon

Pressure Range

5 - 200 PSI

Supply Voltage (Nominal)

120/60 VAC,110/50 VAC

Function

Steam Service

Seal Material

Teflon Elastomer

product series specifications

Valve Function: Steam Service

Solenoid Valve Type: Two Way

Operation: Normally Closed

Body Material:Brass, Stainless Steel

Pipe Size: 1/4 Inch, 3/8 Inch, 1/2 Inch, 3/4 Inch, 1 Inch

Valve Media: Steam

product series features

Two-way pilot-operated diaphragm and piston solenoid valves. Sizes 1/4" to 1". Normally closed operation. Steam service valves with brass or stainless steel body.
Available in 1/4" to 1" pipe sizes
Pilot-operated valves come with a Y-body floating piston or diaphragm design for durability and reliability
Brass or stainless steel body, stainless steel core tube and springs, brass or PTFE piston
For steam service up to 125 PSI differential and 355°F

more information & related documents

Series Description

Two-way pilot-operated diaphragm and piston solenoid valves. Sizes 1/4" to 1". Normally closed operation. Steam service valves with brass or stainless steel body.

Kele Description

ASCO 8222G005 2-WAY N/C 3/4" STEAM SOLENOID VALVE, 120/60, 110/50 VAC

Manufacturer

ASCO
