8221G007 120/60 VAC | ASCO | Control Valves

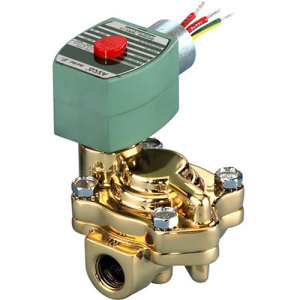

1" 2 WAY, NC 120VAC VALVE
Brand:ASCO
MPN:8221G007 120/60 VAC
SKU:8221G007 120/60 VAC
List Price:
$2,621.27
Today's Price:
$1,363.06
Log in for customized pricingproduct specifications
Max Media Temperature
180 °F
Media Compatibility
Water
Power Supply
AC Line Power
Type
Two Way
Connection
NPT
Sensor Type
Two Way
Valve Operation
Normally Closed
Orifice Size
1 in
Solenoid Coil
238210-032-D
Solenoid Kit
310420
Enclosure Rating
NEMA 1,NEMA 2,NEMA 3,NEMA 3S,NEMA 4,NEMA 4X
Body Material
Brass
Approvals
CE,CSA,UL
Cv
11.5
Pipe Size
1 in
Wetted Materials
Brass, Buna N
Pressure Range
5 - 150 PSI
Supply Voltage (Nominal)
120/60 VAC
Function
General Service
Seal Material
Buna N
product series specifications
Valve Function: General Service, Hot Water, Slow Closing
Solenoid Valve Type: Two Way
Operation: Normally Open, Normally Closed
Body Material:Brass
Pipe Size: 3/8, 1/2, 3/4, 1, 1-1/4, 1-1/2, 2, 2-1/2 Inches
Valve Media: Water-Clean Liquids
product series features
- Pilot-operated two-way normally closed or normally open valves
- Pipe sizes from 3/8" to 2-1/2"
- Snubber slows disc closing speed to protect system against water hammer damage
- Reduces pressure spike caused by water hammer without needing suppressors or other controls in most water systems
- For general service water (to 180°F) or hot water (to 210°F) applications
more information & related documents
Series Description
Two-way pilot-operated slow-closing solenoid valves. Sizes 3/8" to 2-1/2". Normally open or normally closed operation. General service or hot water valves with brass body.
Kele Description
1" 2 WAY, NC 120VAC VALVE
Manufacturer
ASCO
Related Documents
ASCO Hot Water and Steam Service Solenoid Valve Specifications
