8221G003 DC 24/DC D | ASCO | Control Valves

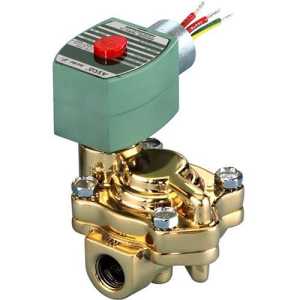

ASCO 8221G003 2-WAY N/C 1/2" SOLENOID VALVE, 24 VDC

Brand:ASCO

MPN:8221G003 DC 24/DC D

SKU:8221G003 DC 24/DC D

List Price:

$945.00

Today's Price:

$429.00

Lead time of > 15 days. Chat with Kele experts now

product specifications

Max Media Temperature

180 °F

Media Compatibility

Air-Inert Gas,Water

Power Supply

DC Line Power

Type

Two Way

Valve Operation

Normally Closed

Orifice Size

9/16 in

Solenoid Coil

238710-006-D*

Solenoid Kit

312577

Enclosure Rating

NEMA 1,NEMA 2,NEMA 3,NEMA 3S,NEMA 4,NEMA 4X

Body Material

Brass

3.5 CV

Pipe Size

1/2 in

Wetted Materials

Brass, Buna N

Pressure Range

5 - 150 PSI

Supply Voltage (Nominal)

24 VDC

Function

General Service

Seal Material

Buna N Elastomer

product series specifications

Valve Function: General Service, Hot Water, Slow Closing

Solenoid Valve Type: Two Way

Operation: Normally Open, Normally Closed

Body Material:Brass

Pipe Size: 3/8, 1/2, 3/4, 1, 1-1/4, 1-1/2, 2, 2-1/2 Inches

Valve Media: Water-Clean Liquids

product series features

Pilot-operated two-way normally closed or normally open valves
Pipe sizes from 3/8" to 2-1/2"
Snubber slows disc closing speed to protect system against water hammer damage
Reduces pressure spike caused by water hammer without needing suppressors or other controls in most water systems
For general service water (to 180°F) or hot water (to 210°F) applications

more information & related documents

Series Description

Two-way pilot-operated slow-closing solenoid valves. Sizes 3/8" to 2-1/2". Normally open or normally closed operation. General service or hot water valves with brass body.

Kele Description

ASCO 8221G003 2-WAY N/C 1/2" SOLENOID VALVE, 24 VDC

Manufacturer

ASCO
