8215B080 CSA AC 120/60,110/50D | ASCO | Control Valves

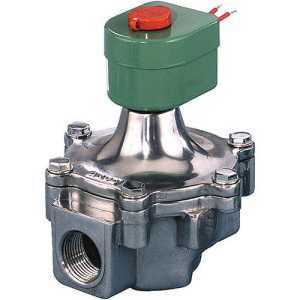

ASCO 8215B080 CSA 2-WAY N/C 2" SOLENOID VALVE, 120/60, 110/50 VAC
Brand:ASCO
MPN:8215B080 CSA AC 120/60,110/50D
SKU:8215B080 CSA AC 120/60,110/50D
List Price:
$1,713.46
Today's Price:
$891.00
Log in for customized pricingproduct specifications
Max Media Temperature
125 °F
Media Compatibility
Air-Inert Gas,Fuel Gas
Power Supply
AC Line Power
Type
Two Way
Connection
NPT
Sensor Type
Two Way
Valve Operation
Normally Closed
Orifice Size
2-3/32 in
Is FM
true
Gas Capacity
3,251,000 BTU/Hr
Solenoid Coil
099257-001-D
Solenoid Kit
302353
Enclosure Rating
NEMA 1
Body Material
Aluminum
Approvals
UL,FM
Cv
60
Pipe Size
2 in
Wetted Materials
Aluminum, Buna N
Pressure Range
0 - 25 PSI
Supply Voltage (Nominal)
110/50 VAC,120/60 VAC
Function
Air and Vac Service
Seal Material
Buna N
product series specifications
Valve Function: Air or Inert Gas, Combustion Fuel Gas, Vent Valve
Solenoid Valve Type: Two Way
Operation: Normally Open, Normally Closed
Body Material: Aluminum
Pipe Size: 3/8, 1/2, 3/4, 1, 1-1/4, 1-1/2, 2, 2-1/2, 3 Inches
Valve Media: Air-Inert Gas, Fuel Gas
product series features
- Available in pipe sizes from 3/8" to 3"
- Pilot-operated aluminum body valves
- Provides high flow, Cv up to 138
- Air and inert gas vacuum service
- Aluminum body, NBR seals and disc, 305 stainless steel core tube
more information & related documents
Series Description
Two-way direct acting or piloted solenoid valves for air and vacuum service. Sizes 1/8" to 3". Normally closed valves UL approved as safety shutoff valves. Normally open valves UL listed for general purpose use. Ideal for low pressure applications.
Kele Description
ASCO 8215B080 CSA 2-WAY N/C 2" SOLENOID VALVE, 120/60, 110/50 VAC
Manufacturer
ASCO
Related Documents
ASCO Valves 8215 Aluminum Body Solenoid Valve Specifications
