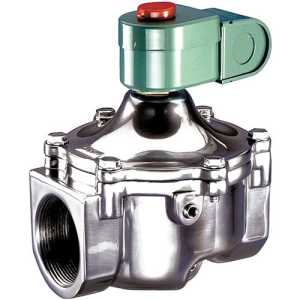

Heavy polished metal solenoid valve with a green actuator housing on top capped by a red button, featuring a large threaded inlet on the side.

8215B050 CSA AC 120/60,110/50D | ASCO | Control Valves

ASCO 8215B050 CSA 2-WAY N/C 1" SOLENOID VALVE, 120/60, 110/50 VAC

Brand:ASCO

MPN:8215B050 CSA AC 120/60,110/50D

SKU:8215B050 CSA AC 120/60,110/50D

List Price:

$890.00

Today's Price:

$530.00

Lead time of > 15 days. Chat with Kele experts now

product specifications

Body Material

Aluminum

Max Media Temperature

125 °F

Type

2-way

Valve Operation

Normally Closed

21 CV

Pipe Size

1 in

Pressure Range

0 - 25 PSI

Supply Voltage (Nominal)

120 VAC,110 VAC

Seal Material

Buna N Elastomer

product series specifications

Valve Function: Air or Inert Gas, Combustion Fuel Gas, Vent Valve

Solenoid Valve Type: Two Way

Operation: Normally Open, Normally Closed

Body Material: Aluminum

Pipe Size: 3/8, 1/2, 3/4, 1, 1-1/4, 1-1/2, 2, 2-1/2, 3 Inches

Valve Media: Air-Inert Gas, Fuel Gas

product series features

Available in pipe sizes from 3/8" to 3"
Pilot-operated aluminum body valves
Provides high flow, Cv up to 138
Air and inert gas vacuum service
Aluminum body, NBR seals and disc, 305 stainless steel core tube

more information & related documents

Series Description

Two-way direct acting or piloted solenoid valves for air and vacuum service. Sizes 1/8" to 3". Normally closed valves UL approved as safety shutoff valves. Normally open valves UL listed for general purpose use. Ideal for low pressure applications.

Kele Description

ASCO 8215B050 CSA 2-WAY N/C 1" SOLENOID VALVE, 120/60, 110/50 VAC

Manufacturer

ASCO
