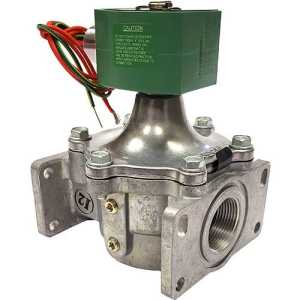

Large gas solenoid valve with a green rectangular coil and wired connections atop a metal valve body with threaded ports.

8214G251 AC 120/60 D | ASCO | Control Valves

ASCO 8214251 2-WAY N/C 1" GAS SHUTOFF SOLENOID VALVE, 120/60 VAC

Brand:ASCO

MPN:8214G251 AC 120/60 D

SKU:8214G251 AC 120/60 D

List Price:

$1,073.00

Today's Price:

$487.00

Lead time of > 15 days. Chat with Kele experts now

product specifications

Body Material

Aluminum

Max Media Temperature

125 °F

Media Compatibility

Air-Inert Gas,Fuel Gas,Water

Power Supply

AC Line Power

Type

Two Way

Valve Operation

Normally Closed

Orifice Size

1-5/8 in

Gas Capacity

1,132,300 BTU/Hr

Solenoid Coil

272610-132-D

Solenoid Kit

323939

Enclosure Rating

NEMA 1,NEMA 2,NEMA 3,NEMA 3S,NEMA 4,NEMA 4X

21 CV

Pipe Size

1 in

Wetted Materials

Aluminum, Buna N

Pressure Range

0 - 5 PSI

Supply Voltage (Nominal)

120/60 VAC

Function

Gas Safety Shutoff

Seal Material

Buna N Elastomer

product series specifications

Valve Function: Combustion Fuel Gas, Safety Shutoff, Vent Valve

Solenoid Valve Type: Two Way

Operation: Normally Open, Normally Closed

Body Material: Aluminum

Pipe Size: 3/8, 1/2, 3/4, 1, 1-1/4, 1-1/2, 2, 2-1/2, 3 Inch

Valve Media: Fuel Gas

product series features

For on-off control or venting of fuel gas in commercial and industrial gas burners
Two-way normally closed gas shutoff valves in pipe sizes 3/8" to 3"
Two-way normally open gas vent vales in pipe sizes 3/8" to 2-1/2"
Unique double-disc design with overtravel provides redundant sealing for leak-tight shutoff in closed position
Available with visual indication of open/shut position and 1-amp SPST proof of closure switch options (Required for FM safety gas shutoff valve approval)
Aluminum body, NBR seals and disc, 305 stainless steel core tube
Valves provided with 1/8" NPT downstream pipe tap with plug for routine testing
General purpose or watertight enclosures
UL, CSA, FM approvals

more information & related documents

Series Description

Two-way direct acting gas shutoff or vent solenoid valves. Sizes 3/8" to 3", normally open or normally closed operation. For fuel gas in commercial and industrial gas burners. UL, CSA, FM approved general purpose or safety shutoff valves.

Kele Description

ASCO 8214251 2-WAY N/C 1" GAS SHUTOFF SOLENOID VALVE, 120/60 VAC

Manufacturer

ASCO
