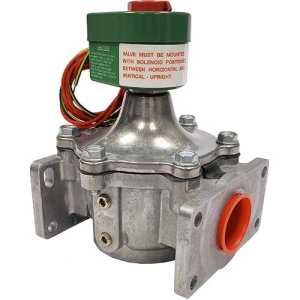

Heavy-duty gas solenoid valve with green coil, flanges and wiring

8214260 CSA AC 120/60,110/50 D | ASCO | Control Valves

Name: 8214260 CSA AC 120/60,110/50 D
Brand: ASCO
SKU: 8214260 CSA AC 120/60,110/50 D
Price: 529 USD
Availability: InStock

ASCO 8214260 CSA 2-WAY N/C 1-1/4" GAS SHUTOFF SOLENOID VALVE, 120/60, 110/50 VAC

Brand:ASCO

MPN:8214260 CSA AC 120/60,110/50 D

SKU:8214260 CSA AC 120/60,110/50 D

List Price:

$1,017.31

Today's Price:

$529.00

product specifications

Max Media Temperature

125 °F

Media Compatibility

Fuel Gas

Power Supply

AC Line Power

Type

Two Way

Connection

NPT

Sensor Type

Two Way

Valve Operation

Normally Closed

Orifice Size

1-5/8 in

Gas Capacity

1,725,500 BTU/Hr

Solenoid Coil

099257-005-D

Solenoid Kit

323632

Enclosure Rating

NEMA 1

Body Material

Aluminum

Approvals

CSA,UL

Pipe Size

1-1/4 in

Wetted Materials

Aluminum, Buna N

Pressure Range

0 - 5 PSI

Supply Voltage (Nominal)

110/50 VAC,120/60 VAC

Function

Gas Safety Shutoff

Seal Material

Buna N

product series specifications

Valve Function: Combustion Fuel Gas, Safety Shutoff, Vent Valve

Solenoid Valve Type: Two Way

Operation: Normally Open, Normally Closed

Body Material: Aluminum

Pipe Size: 3/8, 1/2, 3/4, 1, 1-1/4, 1-1/2, 2, 2-1/2, 3 Inch

Valve Media: Fuel Gas

product series features

For on-off control or venting of fuel gas in commercial and industrial gas burners
Two-way normally closed gas shutoff valves in pipe sizes 3/8" to 3"
Two-way normally open gas vent vales in pipe sizes 3/8" to 2-1/2"
Unique double-disc design with overtravel provides redundant sealing for leak-tight shutoff in closed position
Available with visual indication of open/shut position and 1-amp SPST proof of closure switch options (Required for FM safety gas shutoff valve approval)
Aluminum body, NBR seals and disc, 305 stainless steel core tube
Valves provided with 1/8" NPT downstream pipe tap with plug for routine testing
General purpose or watertight enclosures
UL, CSA, FM approvals

more information & related documents

Series Description

Two-way direct acting gas shutoff or vent solenoid valves. Sizes 3/8" to 3", normally open or normally closed operation. For fuel gas in commercial and industrial gas burners. UL, CSA, FM approved general purpose or safety shutoff valves.

Kele Description

ASCO 8214260 CSA 2-WAY N/C 1-1/4" GAS SHUTOFF SOLENOID VALVE, 120/60, 110/50 VAC

Manufacturer

ASCO
