8212A556L1100F2 | ASCO | Control Valves

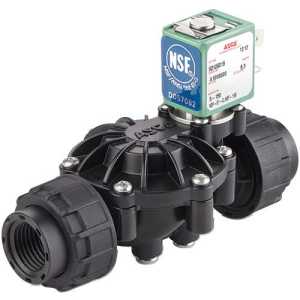

ASCO 8212A556L1100F2 2-WAY N/O 1" SOLENOID VALVE, 120 VAC/60 HZ
Brand:ASCO
MPN:8212A556L1100F2
SKU:8212A556L1100F2
List Price:
$1,188.46
Today's Price:
$618.00
Log in for customized pricingproduct specifications
Max Media Temperature
122 °F
Media Compatibility
Potable Water
Power Supply
AC Line Power
Type
Two Way
Connection
NPT
Sensor Type
Two Way
Valve Operation
Normally Open
Orifice Size
1 in
Solenoid Coil
433763-225-D
Body Material
Engineered Plastic
Approvals
CE,NSF
Cv
13
Pipe Size
1 in
Wetted Materials
Engineered Plastic, Lead-Free Stainless Steel, EPDM, TPE
Pressure Range
5 - 120 PSI
Supply Voltage (Nominal)
120/60 VAC
Function
General Service,Lead-Free,Potable Water
Seal Material
EPDM,TPE
product series specifications
Valve Function: General Service, Potable Water
Solenoid Valve Type: Two Way
Operation: Normally Open, Normally Closed
Body Material Plastic
Pipe Size: 3/8 Inch, 1/2 Inch, 3/4 Inch, 1 Inch
Valve Media: Water-Clean Liquids
product series features
- Composite plastic (PPE) body and stainless steel internals
- Two-way, normally open or normally closed
- NSF certified drinking water and lead-free versions: NSF 61-G, 169, 42, and 372
- UL recognized, CSA certified coils
- Mountable in any position, upright preferred
- ASCO FasN™ connection system available in NPT thread (shown) for pipe, solvent bond for PVC tubing, or Turn & Lock for copper or PEX tubing
- For ambient temperatures between 32° and 120° F (100° F for normally open valves)
more information & related documents
Series Description
Sizes 3/8" to 1". Normally open and normally closed models. NSF-certified general service pilot-operated valves in composite plastic for clean water applications. Lead-free models also available.
Kele Description
ASCO 8212A556L1100F2 2-WAY N/O 1" SOLENOID VALVE, 120 VAC/60 HZ
Manufacturer
ASCO
ASCO Valve 8212 Two-Way Composite Body Solenoid Valve Specifications
