8212A519L1100F0 | ASCO | Control Valves

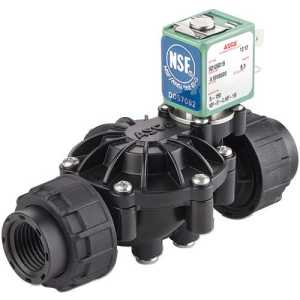

ASCO 8212A519L1100F0 2-WAY N/C 1/2" SOLENOID VALVE, 120/60, 110/50 VAC
Brand:ASCO
MPN:8212A519L1100F0
SKU:8212A519L1100F0
List Price:
$492.00
Today's Price:
$223.00
Log in for customized pricingproduct specifications
Body Material
Composite Plastic Body, Stainless Steel Internals
Max Media Temperature
180 °F
Media Compatibility
Water-Clean Liquids
Power Supply
AC Line Power
Type
Two Way
Valve Operation
Normally Closed
Orifice Size
3/4 in
Solenoid Coil
400147-225-D
Cv
4.5 CV
Pipe Size
1/2 in
Wetted Materials
Plastic, Stainless Steel, Ethylene Polypropylene
Pressure Range
5 - 150 PSI
Supply Voltage (Nominal)
120/60 VAC,110/50 VAC
Function
General Service,Potable Water
Seal Material
Ethylene Polypropylene
product series specifications
Valve Function: General Service, Potable Water
Solenoid Valve Type: Two Way
Operation: Normally Open, Normally Closed
Body Material Plastic
Pipe Size: 3/8 Inch, 1/2 Inch, 3/4 Inch, 1 Inch
Valve Media: Water-Clean Liquids
product series features
- Composite plastic (PPE) body and stainless steel internals
- Two-way, normally open or normally closed
- NSF certified drinking water and lead-free versions: NSF 61-G, 169, 42, and 372
- UL recognized, CSA certified coils
- Mountable in any position, upright preferred
- ASCO FasN™ connection system available in NPT thread (shown) for pipe, solvent bond for PVC tubing, or Turn & Lock for copper or PEX tubing
- For ambient temperatures between 32° and 120° F (100° F for normally open valves)
more information & related documents
Series Description
Sizes 3/8" to 1". Normally open and normally closed models. NSF-certified general service pilot-operated valves in composite plastic for clean water applications. Lead-free models also available.
Kele Description
ASCO 8212A519L1100F0 2-WAY N/C 1/2" SOLENOID VALVE, 120/60, 110/50 VAC
Manufacturer
ASCO
ASCO Valve 8212 Two-Way Composite Body Solenoid Valve Specifications
