8210G094 AC 24/60 D | ASCO | Control Valves

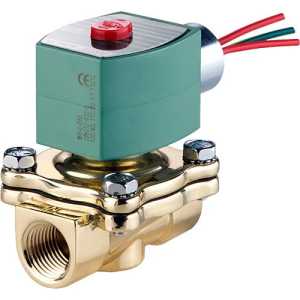

ASCO 8210G094 2-WAY N/C 1/2" SOLENOID VALVE, 24 VAC/60HZ

Brand:ASCO

MPN:8210G094 AC 24/60 D

SKU:8210G094 AC 24/60 D

List Price:

$363.46

Today's Price:

$189.00



Availability: Usually Ships in Less Than 10 Business Days
Available Inventory
Lead times are estimates based on our Memphis location and subject to change without notice based on customer demand.

Need more?
Just order your desired quantity and we'll ship the available inventory immediately while we source the remaining quantity to get you all the products you need as soon as possible.

We can also reserve the available inventory and ship once we acquire the remaining quantity from the supplier. Just choose "Ship Complete" at checkout.

catalog page

product specifications

Cv

4

Type

2-way

Pipe Size

1/2 in

Pressure Range

0-150 PSI

Voltage

24 VAC/60Hz

Body Material

Brass

Max Media Temperature

180 °F

Valve Operation

Normally Closed

Seal Material

Buna N Elastomer

product series specifications

    Size:
  • 1/2" NPT to 2" NPT
    Cv:
  • 4.0, 5.0, 13, 15, 22, 43, 5.5
    Materials Of Construction:
    :
  • Body Brass
    :
  • Seals & Disc NBR or PTFE
    Media Compatibility:
  • Clean hot or chilled water, air or inert gas
    Media Temperature Range:
  • Maximum 180‚Ñâ (82‚ÑÉ) water temperature
    Supply Voltage:
  • 120 VAC, 60 Hz, 24 VAC, 60 Hz
    Action:
  • N.C., N.O. (valve body determines action)
    Operating Pressure:
  • Minimum 5 psid (35 kPa), maximum 125 to 150 psid (862 to 1034 kPa), varies by model
    Operating Temperature:
  • 32° to 125‚Ñâ (0° to 52‚ÑÉ)
    Enclosure Rating:
  • NEMA 4 (standard Red Hat II enclosure)
    Approvals:
  • CSA, UL File #MP618, CE
    Warranty:
  • 1 year

product series features

  • Wide range of pressure ratings, sizes, and resilient materials for long service life and low internal leakage
  • High flow capacity valves for liquid, corrosives, and air/inert gas service
  • General service models for industrial air compressors, laundry, power washing, industrial water control, pumps
  • Normally open gas vent valves or normally closed gas shutoff valves for high pressure applications in control of commercial or industrial gas burners
  • Hot water service pilot operated diaphragm valves for high temperature applications in laundries, molding, steam atomization, sterilizers, and autoclaves
  • Lead-free versions available for Safe Drinking Water Act compliance
  • Long-life, quiet operating valves available for air or inert gas use, extending life up to 20 million cycles in dry air or gas applications

more information & related documents

Series Description

Two-way pilot-operated solenoid valves. Sizes 3/8" to 2-1/2". Normally open and normally closed models. General service valves in brass or stainless steel suitable for air and inert gas, water, light oil. Brass models also available for fuel gas venting, safety shutoff or hot water service.

Kele Description

ASCO 8210G094 2-WAY N/C 1/2" SOLENOID VALVE, 24 VAC/60HZ

Manufacturer

ASCO
