8210G035-120/60 | ASCO | Control Valves
CVLV-SOLENOID, 3/4IN, NPT, NO, 120VAC COIL
Manufacturer:ASCO
MPN:8210G035-120/60
SKU:8210G035-120/60
List Price:
981.24
Today's Price:
549.49
add to cart
product family specifications
Size
1/2" NPT to 2" NPT
Cv
4.0, 5.0, 13, 15, 22, 43, 5.5
Materials Of Construction
Body Brass
Seals & Disc NBR or PTFE
Media Compatibility
Clean hot or chilled water, air or inert gas
Media Temperature Range
Maximum 180℉ (82℃) water temperature
Supply Voltage
120 VAC, 60 Hz, 24 VAC, 60 Hz
Action
N.C., N.O. (valve body determines action)
Operating Pressure
Minimum 5 psid (35 kPa), maximum 125 to 150 psid (862 to 1034 kPa), varies by model
Operating Temperature
32° to 125℉ (0° to 52℃)
Enclosure Rating
NEMA 4 (standard Red Hat II enclosure)
Approvals
CSA, UL File #MP618, CE
Warranty
1 year
product family features
- Industry standard Red Hat II
- Wide range of sizes and options
- High flow rates, low pressure drop
- Long service life
- For hot or chilled water, air or inert gases
- 1/2" NPT conduit connection standard
- Lead wires standard
- Not polarity sensitive
more information & related documents
Family Description

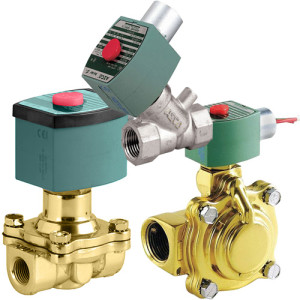

The ASCO 8210 Series solenoid valves are general service, pilot operated, two-way solenoid valves for liquid and air/inert gas applications. They are available in normally closed or normally open operation with coil voltages to meet any typical application. The 8210 Series come completely assembled with conduit connection and wire leads.
Kele Description
CVLV-SOLENOID, 3/4IN, NPT, NO, 120VAC COIL
Manufacturer
ASCO
