8044A002 CSA AC 120/60,110/50D | ASCO | Control Valves

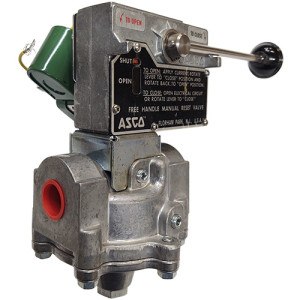

ASCO 2-WAY N/C 1 X 1-5/8 GAS SHUTOFF SOL VLV: ALUM, BUNA N
Brand:ASCO
MPN:8044A002 CSA AC 120/60,110/50D
SKU:8044A002 CSA AC 120/60,110/50D
List Price:
$4,686.54
Today's Price:
$2,437.00
Log in for customized pricingShipping Lead time of 15 days.
product specifications
Max Media Temperature
125 °F
Media Compatibility
Fuel Gas
Power Supply
AC Line Power
Type
Two Way
Connection
NPT
Sensor Type
Two Way
Valve Operation
Normally Closed
Orifice Size
1-5/8 in
Is FM
true
Gas Capacity
1,170,000 BTU/Hr
Solenoid Coil
099257-005-D
Enclosure Rating
NEMA 1
Body Material
Aluminum
Approvals
CSA,FM,UL
Cv
22
Pipe Size
1 in
Wetted Materials
Aluminum, Buna N
Pressure Range
0 - 25 PSI
Supply Voltage (Nominal)
110/50 VAC,120/60 VAC
Function
Gas Safety Shutoff
Seal Material
Buna N
product series features
- Free handle will not open valve until solenoid is energized
- Valve trips closed instantly when solenoid is de-energized
- Highly visible position indicator
- Aluminum body construction
more information & related documents
Series Description
ASCO 8044B001 CSA 2-Way N/C 3/4" Solenoid Valves
Kele Description
ASCO 2-WAY N/C 1 X 1-5/8 GAS SHUTOFF SOL VLV: ALUM, BUNA N
Manufacturer
ASCO
Related Documents
8044 Manual Reset Shutoff Valves
