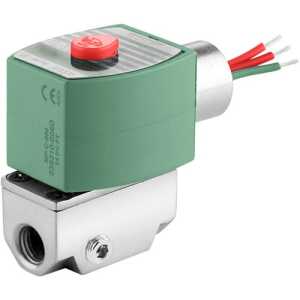

Small rectangular stainless steel solenoid valve with a green actuator housing, red button and colored wires

8040H008 AC 120/60,110/50 D | ASCO | Control Valves

ASCO 8040H008 2-WAY N/C 3/8" SOLENOID VALVE, 120/60, 110/50 VAC

Brand:ASCO

MPN:8040H008 AC 120/60,110/50 D

SKU:8040H008 AC 120/60,110/50 D

List Price:

$274.00

Today's Price:

$124.00

Lead time of 5 days. Chat with Kele experts now

product specifications

Body Material

Aluminum

Max Media Temperature

125 °F

Media Compatibility

Air

Power Supply

AC Line Power

Type

Two Way

Valve Operation

Normally Closed

Orifice Size

3/8 in

Solenoid Coil

238210-032-D*

Solenoid Kit

318247

Enclosure Rating

NEMA 1,NEMA 2,NEMA 3,NEMA 3S,NEMA 4,NEMA 4X

1.2 CV

Pipe Size

3/8 in

Wetted Materials

Aluminum, Buna N

Pressure Range

0 - 15 PSI

Supply Voltage (Nominal)

120/60 VAC,110/50 VAC

Seal Material

Buna N Elastomer

product series specifications

Valve Function: Combustion Fuel Gas, Safety Shutoff

Solenoid Valve Type: Two Way

Operation: Normally Open, Normally Closed

Body Material: Aluminum

Pipe Size: 1/8 Inch, 1/4 Inch, 3/8 Inch, 1/2 Inch, 3/4 Inch, 1 Inch, 1-1/4 Inch

Valve Media: Air-Inert Gas, Fuel Gas

product series features

For gas pilot or main burner control of commercial and industrial gas burners
Mountable in any position
Aluminum body, NBR seals and disc, 305 stainless steel core tube, copper shading coil, zinc-plated steel pipe plug
UL, FM, CSA approved for gas safety shutoff
Valves with letter G or H in their catalog numbers have RedHat II molded epoxy Types 1 , 2, 3, 3S, 4, and 4X general purpose and watertight solenoid enclosures with 1/2" conduit hub. Valves with letter C in their catalog numbers have RedHat metal Type 1 general purpose enclosures with 7/8" hole for 1/2" conduit connection

more information & related documents

Series Description

Two-way direct acting gas shutoff solenoid valves. Sizes 1/8" to 1-1/4", normally closed operation. For gas pilot control of commercial and industrial gas burners. UL, CSA, FM approved safety shutoff valves.

Kele Description

ASCO 8040H008 2-WAY N/C 3/8" SOLENOID VALVE, 120/60, 110/50 VAC

Manufacturer

ASCO
