8040G023 AC 24/60 D | ASCO | Control Valves

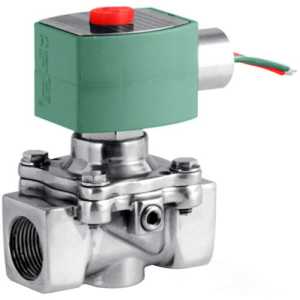

ASCO 8040G023 2-WAY N/C 3/4" SOLENOID VALVE, 24/60 VAC
Brand:ASCO
MPN:8040G023 AC 24/60 D
SKU:8040G023 AC 24/60 D
List Price:
$545.00
Today's Price:
$247.00
Log in for customized pricingproduct specifications
Body Material
Aluminum
Max Media Temperature
125 °F
Media Compatibility
Air
Power Supply
AC Line Power
Type
Two Way
Valve Operation
Normally Closed
Orifice Size
3/4 in
Solenoid Coil
238610-005-D*
Solenoid Kit
306633
Enclosure Rating
NEMA 1,NEMA 2,NEMA 3,NEMA 3S,NEMA 4,NEMA 4X
Cv
9.5 CV
Pipe Size
3/4 in
Wetted Materials
Aluminum, Buna N
Pressure Range
0 - 2 PSI
Supply Voltage (Nominal)
24/60 VAC
Seal Material
Buna N Elastomer
product series specifications
Valve Function: Combustion Fuel Gas, Safety Shutoff
Solenoid Valve Type: Two Way
Operation: Normally Open, Normally Closed
Body Material: Aluminum
Pipe Size: 1/8 Inch, 1/4 Inch, 3/8 Inch, 1/2 Inch, 3/4 Inch, 1 Inch, 1-1/4 Inch
Valve Media: Air-Inert Gas, Fuel Gas
product series features
- For gas pilot or main burner control of commercial and industrial gas burners
- Mountable in any position
- Aluminum body, NBR seals and disc, 305 stainless steel core tube, copper shading coil, zinc-plated steel pipe plug
- UL, FM, CSA approved for gas safety shutoff
- Valves with letter G or H in their catalog numbers have RedHat II molded epoxy Types 1 , 2, 3, 3S, 4, and 4X general purpose and watertight solenoid enclosures with 1/2" conduit hub. Valves with letter C in their catalog numbers have RedHat metal Type 1 general purpose enclosures with 7/8" hole for 1/2" conduit connection
more information & related documents
Series Description
Two-way direct acting gas shutoff solenoid valves. Sizes 1/8" to 1-1/4", normally closed operation. For gas pilot control of commercial and industrial gas burners. UL, CSA, FM approved safety shutoff valves.
Kele Description
ASCO 8040G023 2-WAY N/C 3/4" SOLENOID VALVE, 24/60 VAC
Manufacturer
ASCO
ASCO Valve 8040 Combustion Gas Shutoff Solenoid Valve Specifications - 3'8" to 1-1/4" NPT
