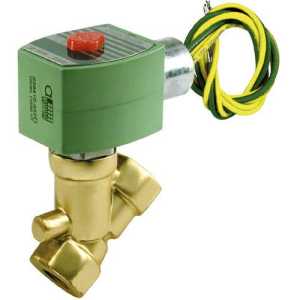

Compact brass Y-shaped solenoid valve featuring a green coil on top with a red button and attached yellow and green electrical leads

8030G069 AC 120/60,110/50 D | ASCO | Control Valves

ASCO 8030G069 2-WAY N/C 1/2" SOLENOID VALVE, 120/60, 110/50 VAC

Brand:ASCO

MPN:8030G069 AC 120/60,110/50 D

SKU:8030G069 AC 120/60,110/50 D

List Price:

$712.00

Today's Price:

$323.00

Lead time of > 15 days. Chat with Kele experts now

product specifications

Body Material

Brass

Max Media Temperature

125 °F

Media Compatibility

Fuel Gas

Power Supply

AC Line Power

Type

Two Way

Valve Operation

Normally Closed

Orifice Size

7/16 in

Is FM

true

Gas Capacity

151,000 BTU/Hr

Solenoid Coil

238610-032-D

Solenoid Kit

306629

Enclosure Rating

NEMA 1,NEMA 2,NEMA 3,NEMA 3S,NEMA 4,NEMA 4X

2.8 CV

Pipe Size

1/2 in

Wetted Materials

Brass, Buna N

Pressure Range

0 - 6 PSI

Supply Voltage (Nominal)

120/60 VAC,110/50 VAC

Function

Combustion Fuel Gas,Safety Shutoff

Seal Material

Buna N Elastomer

product series specifications

Valve Actuation: Solenoid

Body Material:Brass, Stainless Steel

Media: Air, Inert Gas, Natural Gas, Water

Pipe / Port Size: 1/2 ", 3/8 ", 3/4 "

Port Type: NPTF

Function: 2 way - 2/2 Normally Closed, 2 way - 2/2 Normally Open

Flow: From 2.0 Cv to 6.0 Cv, From 6.0 Cv to 14.0 Cv

Voltage: 24 AC, 110 AC, 120 AC, 220 AC, 230 AC, 480 AC, 6 DC, 12 DC, 24 DC, 120 DC, 240 DC | 50/60

Max Differential / Max Operating Pressure: Vacuum to 150 PSIG

Operating Environment: Indoor, Outdoor

Standards / Regulations: CSA, FM, UL

product series features

Ideal for low pressure general service and vacuum applications
Brass constructions available for fuel gas service in commercial and industrial gas burners
Gas shutoff model has 2-way normally closed operation
Gas vent model has 2-way normally open operation
Most constructions mountable in any position for convenient installation

more information & related documents

Series Description

Two-way direct acting solenoid valve. Sizes 3/8" to 3/4", normally open or normally closed operation. For air, inert gas, water, or combustion fuel gas. For general service, venting, or safety shutoff use.

Kele Description

ASCO 8030G069 2-WAY N/C 1/2" SOLENOID VALVE, 120/60, 110/50 VAC

Manufacturer

ASCO
