8030G010 AC 120/60,110/50 D | ASCO | Control Valves

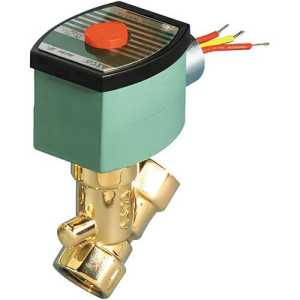

ASCO 8030G010 2-WAY N/C 3/8" SOLENOID VALVE, 120/60, 110/50 VAC
Brand:ASCO
MPN:8030G010 AC 120/60,110/50 D
SKU:8030G010 AC 120/60,110/50 D
List Price:
$445.00
Today's Price:
$202.00
Log in for customized pricingproduct specifications
Body Material
Brass
Max Media Temperature
180 °F
Media Compatibility
Air-Inert Gas,Water-Clean Liquids
Power Supply
AC Line Power
Type
Two Way
Valve Operation
Normally Closed
Orifice Size
3/8 in
Solenoid Coil
238210-032-D*
Solenoid Kit
302787
Enclosure Rating
NEMA 1,NEMA 2,NEMA 3,NEMA 3S,NEMA 4,NEMA 4X
Cv
1.8 CV
Pipe Size
3/8 in
Wetted Materials
Brass, Buna N
Pressure Range
Air/Inert Gas: 0 - 7 PSI; Water: 0 - 5 PSI
Supply Voltage (Nominal)
120/60 VAC,110/50 VAC
Function
General Service
Seal Material
Buna N Elastomer
product series specifications
Valve Actuation: Solenoid
Body Material:Brass, Stainless Steel
Media: Air, Inert Gas, Natural Gas, Water
Pipe / Port Size: 1/2 ", 3/8 ", 3/4 "
Port Type: NPTF
Function: 2 way - 2/2 Normally Closed, 2 way - 2/2 Normally Open
Flow: From 2.0 Cv to 6.0 Cv, From 6.0 Cv to 14.0 Cv
Voltage: 24 AC, 110 AC, 120 AC, 220 AC, 230 AC, 480 AC, 6 DC, 12 DC, 24 DC, 120 DC, 240 DC | 50/60
Max Differential / Max Operating Pressure: Vacuum to 150 PSIG
Operating Environment: Indoor, Outdoor
Standards / Regulations: CSA, FM, UL
product series features
- Ideal for low pressure general service and vacuum applications
- Brass constructions available for fuel gas service in commercial and industrial gas burners
- Gas shutoff model has 2-way normally closed operation
- Gas vent model has 2-way normally open operation
- Most constructions mountable in any position for convenient installation
more information & related documents
Series Description
Two-way direct acting solenoid valve. Sizes 3/8" to 3/4", normally open or normally closed operation. For air, inert gas, water, or combustion fuel gas. For general service, venting, or safety shutoff use.
Kele Description
ASCO 8030G010 2-WAY N/C 3/8" SOLENOID VALVE, 120/60, 110/50 VAC
Manufacturer
ASCO
ASCO-8030-IM-5304r5
