S55180-A152 | Siemens Industry | Control Valves

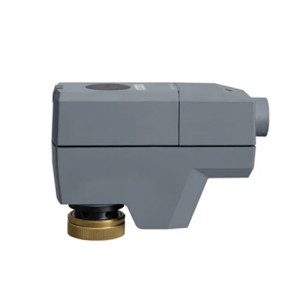

SSC131.09U 3P FIP POWERMITE MT ACT

Brand:Siemens Industry

MPN:S55180-A152

SKU:S55180-A152

List Price:

$281.00

Today's Price:

$146.12

Lead time of 8 days. Chat with Kele experts now

product series specifications

Size: 1/2" to 2" (15 to 50 mm)

Cv Range: 0.5 - 50

Body Pattern: Two-way (Normally Closed and Normally Open) available

Flow Characteristic: Linear

Leakage Rating/Closeoff Pressure: 1/2" to 1 1/4" NO ANSI Class IV (0.01%) @ 200 psi : 1 1/2" to 2" NO ANSI Class IV (0.01%) @ 100 psi : 1/2" to 1 1/4" NC ANSI Class IV (0.01%) @ 45 psi

Materials of Construction: Body: 1/2" to 1 1/4" Brass, 1 1/2" and 2" Ductile Iron; Plug: Brass; Stem, spring : Stainless Steel; Seals : EPDM 281 O-ring

Media Compatibility: Hot or chilled water, up to 50% glycol

Media Temperature Range: 34°F to 248°F (1°C to 120°C)

Compatible Actuators: 1/2" to 1 1/4" (SSD Electronic Actuators) and 1 1/2" to 2" (SAY Electronic Actuators)

Operating Temperature: 41°F to 122°F (5°C to 50°C)

Pressure Rating: 45 psi (1/2″ to 1-1/4" NC), 100 psi (1-1/2" to 2" NO), 200 psi (1/2" to 1-1/4" NO)

Warranty: 5 years

product series features

Control valve with integrated pressure regulator and adjustable flow limiter.
ANSI Class 250 valve body.
200 psi close-off with ANSI Class IV leakage (1/2 to 1-1/4-inch Normally Open).
100 psi close-off with ANSI Class IV leakage (1-1/2- and 2-inch Normally Open).
45 psi close-off with ANSI Class IV leakage (1/2 to 1-1/4 inch Normally Closed).
Linear Flow Characteristic.
Stainless Steel Stem.
1-1/2- and 2-Inch Normally Open Valves include P/T ports.
SAY actuators for 1-1/2- and 2-inch Normally Open Valves can also be set for Normally Closed operation (reverse acting).

more information & related documents

Series Description

The Siemens PICV Series 1/2 in. to 1 1/4 in. Pressure Independent Control Valves have a 2.5, 5, or 5.5mm stroke and work with the SSD Series Electronic Actuators. The 1 1/2 in. to 2 in. Normally Open Valves have a 15mm stroke and work with the SAY Series Electronic Actuators. SAY Actuators for 1 1/2 in. and 2 in. Normally Open Valves can also be set for Normally Closed operation (reverse acting). The SSD and SAY Actuators require a 24-Volt power supply to provide floating or 0 to 10 Vdc control. Kele is the leading supplier of building automation products. When you need the right product, right now, count on Kele.

Kele Description

SSC131.09U 3P FIP POWERMITE MT ACT

Manufacturer

Siemens Industry
