232-04314-9 | Siemens Industry | Control Valves

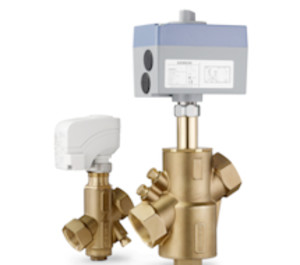

1-1/4IN PICV 9 GPM + 3P SR NO
Manufacturer:Siemens Industry
MPN:232-04314-9
SKU:232-04314-9
List Price:
$1,136.00
Today's Price:
$636.16
product family specifications
Size
1/2″- to 2″ (15 to 50 mm)
Cv Range
0.5 - 50
Body Pattern
Two-way (Normally Closed and Normally Open
available)
Flow Characteristic
Linear
Leakage Rating/Closeoff Pressure
1/2″ to 1 1/4 ″ NO ANSI Class IV (0.01%) @ 200 psi
1 1/2″ to 2″ NO ANSI Class IV (0.01%) @ 100 psi
1/2″ to 1 1/4″ NC ANSI Class IV (0.01%) @ 45 psi
Materials of Construction
Body
1/2″ to 1 1/4″ Brass
1 1/2″ and 2″ Ductile Iron
Plug
Brass
Stem, spring
Stainless Steel
Seals
EPDM 281 O-ring
Media Compatibility
Hot or chilled water, up to 50% glycol
Media Temperature Range
34℉ to 248℉ (1℃ to 120℃)
Compatible Actuators
1/2″ to 1 1/4″ (SSD Electronic Actuators) and 1 1/2″ to 2″ (SAY Electronic Actuators)
Operating Temperature
41°F to 122°F (5°C to 50°C)
Pressure Rating
45 psi (1/2″ to 1-1/4″ NC), 100 psi (1-1/2″ to 2″ NO), 200 psi (1/2″ to 1-1/4″ NO)
Warranty
5 years
product family features
- Control valve with integrated pressure regulator and adjustable flow limiter.
- ANSI Class 250 valve body.
- 200 psi close-off with ANSI Class IV leakage (1/2 to 1-1/4-inch Normally Open).
- 100 psi close-off with ANSI Class IV leakage (1-1/2- and 2-inch Normally Open).
- 45 psi close-off with ANSI Class IV leakage (1/2 to 1-1/4 inch Normally Closed).
- Linear Flow Characteristic.
- Stainless Steel Stem.
- 1-1/2- and 2-Inch Normally Open Valves include P/T ports.
- SAY actuators for 1-1/2- and 2-inch Normally Open Valves can also be set for Normally Closed operation (reverse acting).
more information & related documents
Family Description
The Siemens PICV Series 1/2″ to 1 1/4″ Pressure Independent Control Valves have a 2.5, 5, or 5.5mm stroke and work with the SSD Series Electronic Actuators. The 1 1/2″ to 2″ Normally Open Valves have a 15mm stroke and work with the SAY Series Electronic Actuators. SAY Actuators for 1 1/2″ and 2″ Normally Open Valves can also be set for Normally Closed operation (reverse acting). The SSD and SAY Actuators require a 24-Volt power supply to provide floating or 0 to 10 Vdc control. Kele is the leading supplier of building automation products. When you need the right product, right now, count on Kele.
Kele Description
1-1/4IN PICV 9 GPM + 3P SR NO
Manufacturer
Siemens Industry
