232-04314-15 | Siemens Industry | Control Valves

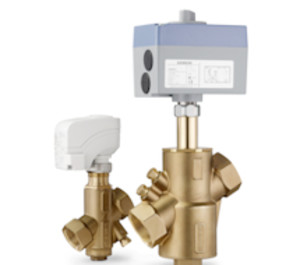

1-1/4IN PICV 15 GPM + 3P SR NO
Brand:Siemens Industry
MPN:232-04314-15
SKU:232-04314-15
List Price:
$1,198.00
Today's Price:
$622.96
product specifications
Connection
NPT
Fail-Safe
Spring Return
Supply Voltage
24 VAC
Trim Material
Stainless Steel
Size
1-1/4 in
Control Signal
3 Position, Floating
GPM
15 GPM
product series specifications
- Size:
- 1/2‚Ä=- to 2‚Ä= (15 to 50 mm)
- Cv Range:
- 0.5 - 50
- Body Pattern:
- Two-way (Normally Closed and Normally Open
- available):
- Flow Characteristic:
- Linear
- Leakage Rating/Closeoff Pressure:
- 1/2‚Ä= to 1 1/4 ‚Ä= NO ANSI Class IV (0.01%) @ 200 psi
- :
- 1 1/2‚Ä= to 2‚Ä= NO ANSI Class IV (0.01%) @ 100 psi
- :
- 1/2‚Ä= to 1 1/4‚Ä= NC ANSI Class IV (0.01%) @ 45 psi
- Materials of Construction:
- Body:
- 1/2‚Ä= to 1 1/4‚Ä= Brass
- :
- 1 1/2‚Ä= and 2‚Ä= Ductile Iron
- Plug:
- Brass
- Stem, spring :
- Stainless Steel
- Seals :
- EPDM 281 O-ring
- Media Compatibility:
- Hot or chilled water, up to 50% glycol
- Media Temperature Range:
- 34‚Ñâ to 248‚Ñâ (1‚ÑÉ to 120‚ÑÉ)
- Compatible Actuators:
- 1/2‚Ä= to 1 1/4‚Ä= (SSD Electronic Actuators) and 1 1/2‚Ä= to 2‚Ä= (SAY Electronic Actuators)
- Operating Temperature:
- 41°F to 122°F (5°C to 50°C)
- Pressure Rating:
- 45 psi (1/2‚Ä= to 1-1/4‚Ä= NC), 100 psi (1-1/2‚Ä= to 2‚Ä= NO), 200 psi (1/2‚Ä= to 1-1/4‚Ä= NO)
- Warranty:
- 5 years
product series features
- Control valve with integrated pressure regulator and adjustable flow limiter.
- ANSI Class 250 valve body.
- 200 psi close-off with ANSI Class IV leakage (1/2 to 1-1/4-inch Normally Open).
- 100 psi close-off with ANSI Class IV leakage (1-1/2- and 2-inch Normally Open).
- 45 psi close-off with ANSI Class IV leakage (1/2 to 1-1/4 inch Normally Closed).
- Linear Flow Characteristic.
- Stainless Steel Stem.
- 1-1/2- and 2-Inch Normally Open Valves include P/T ports.
- SAY actuators for 1-1/2- and 2-inch Normally Open Valves can also be set for Normally Closed operation (reverse acting).
more information & related documents
Series Description
The Siemens PICV Series 1/2 in. to 1 1/4 in. Pressure Independent Control Valves have a 2.5, 5, or 5.5mm stroke and work with the SSD Series Electronic Actuators. The 1 1/2 in. to 2 in. Normally Open Valves have a 15mm stroke and work with the SAY Series Electronic Actuators. SAY Actuators for 1 1/2 in. and 2 in. Normally Open Valves can also be set for Normally Closed operation (reverse acting). The SSD and SAY Actuators require a 24-Volt power supply to provide floating or 0 to 10 Vdc control. Kele is the leading supplier of building automation products. When you need the right product, right now, count on Kele.
Kele Description
1-1/4IN PICV 15 GPM + 3P SR NO
Manufacturer
Siemens Industry
