SSM-6-A-L-497C/GASEX24-450-AWS | Bray | Control Valves

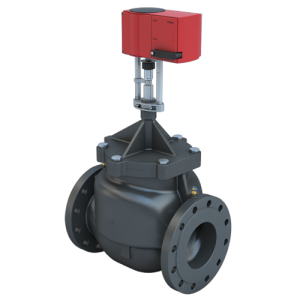

Simple Set Max 6" Flanged, ANSI 125, 496.87 GPM, Normally Closed Pressure Independent Control Valve, 116 PSI close-Off, Normally Closed, Pic and Globe Valve Linear Actuator 24AC/DC, On/off, Floating, and modulating, 450lb-in, IP66, spring return -down, shaft Normally Extended, with Auxiliary Switch, Weather Sheild for GA450/562
Brand:Bray
MPN:SSM-6-A-L-497C/GASEX24-450-AWS
SKU:SSM-6-A-L-497C/GASEX24-450-AWS
List Price:
$19,450.00
Today's Price:
$10,114.00
Log in for customized pricingproduct specifications
Options
Weather Sheild
Torque
450 in-lb
Type
Assembly
Close Off Pressure
116 psi
Actuator Type
Spring Return
Medium
Water/Glycol
Housing
Weather Shield
Valve Type
Pressure Independent
Supply Voltage (Nominal)
24 VAC
Pattern
2-way
Size
6 in
GPM
496.87
Actuator Power Type
Electric
Fail Position
Closed
With Auxiliary Switch
Yes
Control Signal
Floating,Analog,Two Position
product series features
- Cast/Ductile Iron housing with Stainless Steel flow regulation unit
- Low pressure drop
- Easily adjustable flow rates and actuator characteristics
- No minimum straight pipe lengths required upstream or downstream of the valve
more information & related documents
Series Description
The Bray Simple Set Max is a flanged pressure independent control (PIC) valve designed for a wide variety of hot water and chilled water control applications. The SSM Series combines high rangeability control with dynamic balancing into a single compact housing, eliminating material installation and commissioning costs of separate balancing components. These ANSI 250 rated valves are well suited for the higher flow and pressure requirements of larger buildings.
Kele Description
6IN,FLG ANSI 125,496.87GPM,PICV,LOW,NC,24VAC,FLTG;MOD;ON/OFF,FC,AUX SW;ENC TS;TIME OUT,WTHR SHLD
Manufacturer
Bray
Related Documents
Bray Commercial SS Series IOM
