SSM-5-A-H-511/GASEX24-450-WS | Bray | Control Valves

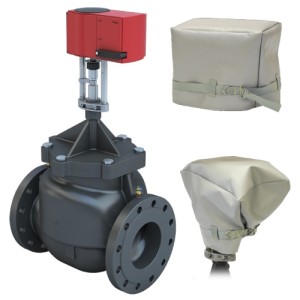

Simple Set Max 5" Flanged, ANSI 125, 510.79 GPM Pressure Independent Control Valve, Max 116 PSI close-Off, Normally Open, Pic and Globe Valve Linear Actuator 24AC/DC, On/off, Floating, and modulating, 450 lb-in, IP66, spring return -down, shaft Normally Extended, Weather Sheild for GA450/562

Brand:Bray

MPN:SSM-5-A-H-511/GASEX24-450-WS

SKU:SSM-5-A-H-511/GASEX24-450-WS

List Price:

$19,062.00

Today's Price:

$9,912.24

Lead time of > 15 days. Chat with Kele experts now

product specifications

Options

Enclosed Terminal Strip,Weather Sheild

Torque

450 in-lb

Type

Assembly

Close Off Pressure

116 psi

Actuator Type

Spring Return

Medium

Water/Glycol

Valve Type

Pressure Independent

Supply Voltage (Nominal)

24 VAC

Pattern

2-way

Size

5 in

GPM

510.79

Actuator Power Type

Electric

Fail Position

Open

Control Signal

Floating,Analog,Two Position

product series features

Cast/Ductile Iron housing with Stainless Steel flow regulation unit
Low pressure drop
Easily adjustable flow rates and actuator characteristics
No minimum straight pipe lengths required upstream or downstream of the valve

more information & related documents

Series Description

The Bray Simple Set Max is a flanged pressure  independent control (PIC) valve designed for a  wide variety of hot water and chilled water control  applications. The SSM Series combines high rangeability control with dynamic balancing into a single  compact housing, eliminating material installation  and commissioning costs of separate balancing  components. These ANSI 250 rated valves are well  suited for the higher flow and pressure requirements  of larger buildings.

Kele Description

5IN,FLG ANSI 125,510.79GPM,PICV,HIGH,NO,24VAC,FLTG;MOD;ON/OFF,FO,ENC TS STRIP;TIME OUT,WTHR SHLD

Manufacturer

Bray
