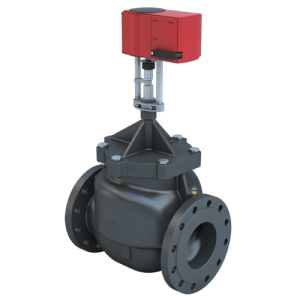

SSM-250A250-L-51C/GASEX24450WS | Bray | Control Valves
Simple Set Max 2.5" Flanged, ANSI 250, 50.63 GPM, Normally Closed, Pressure Independent Control Valve, Max 116 PSI close-Off, Normally Closed, Pic and Globe Valve Linear Actuator 24AC/DC, On/off, Floating, and modulating, 450 lb-in, IP66, spring return -down, shaft Normally Extended, Weather Sheild for GA450/562
Brand:Bray
MPN:SSM-250A250-L-51C/GASEX24450WS
SKU:SSM-250A250-L-51C/GASEX24450WS
List Price:
$9,409.00
Today's Price:
$4,892.68
Log in for customized pricingproduct specifications
Options
Enclosed Terminal Strip,Weather Sheild
Torque
450 in-lb
Type
Assembly
Close Off Pressure
116 psi
Actuator Type
Spring Return
Medium
Water/Glycol
Valve Type
Pressure Independent
Supply Voltage (Nominal)
24 VAC
Pattern
2-way
Size
2-1/2 in
GPM
50.63
Actuator Power Type
Electric
Fail Position
Closed
Control Signal
Floating,Analog,Two Position
product series features
- Cast/Ductile Iron housing with Stainless Steel flow regulation unit
- Low pressure drop
- Easily adjustable flow rates and actuator characteristics
- No minimum straight pipe lengths required upstream or downstream of the valve
more information & related documents
Series Description
The Bray Simple Set Max is a flanged pressure independent control (PIC) valve designed for a wide variety of hot water and chilled water control applications. The SSM Series combines high rangeability control with dynamic balancing into a single compact housing, eliminating material installation and commissioning costs of separate balancing components. These ANSI 250 rated valves are well suited for the higher flow and pressure requirements of larger buildings.
Kele Description
2.5IN,FLG ANSI 250,50.63GPM,PICV,LOW,NC,24VAC,FLTG;MOD;ON/OFF,FC,ENC TS STRIP;TIME OUT,WTHR SHLD
Manufacturer
Bray
Related Documents
Bray Commercial GAS Series Submittal
