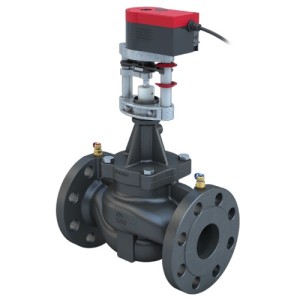

SSM-250-A-L-81/PAM24-112 | Bray | Control Valves

Simple Set Max 2.5" Flanged, ANSI 125, 81.33 GPM Pressure Independent Control Valve, Max 116 PSI close-Off, Normally Open, Pic Valve Linear Actuator ACT, 1.5-3"SS/SSM, auto calibrate to Valve stroke, field selectable direct or reverse acting.

Brand:Bray

MPN:SSM-250-A-L-81/PAM24-112

SKU:SSM-250-A-L-81/PAM24-112

List Price:

$8,236.00

Today's Price:

$4,282.72

Lead time of > 15 days. Chat with Kele experts now

product specifications

Options

Manual Override Handwheel

Torque

112 in-lb

Type

Assembly

Close Off Pressure

116 psi

Actuator Type

Non-Fail Safe

Medium

Water/Glycol

Housing

Weather Shield

Valve Type

Pressure Independent

Enclosure Rating

IP54,NEMA 3S

Supply Voltage (Nominal)

24 VAC

Pattern

2-way

Size

2-1/2 in

Actuator Power Type

Electric

Fail Position

Last

Control Signal

Floating,Analog,Two Position

product series features

Cast/Ductile Iron housing with Stainless Steel flow regulation unit
Low pressure drop
Easily adjustable flow rates and actuator characteristics
No minimum straight pipe lengths required upstream or downstream of the valve

more information & related documents

Series Description

The Bray Simple Set Max is a flanged pressure  independent control (PIC) valve designed for a  wide variety of hot water and chilled water control  applications. The SSM Series combines high rangeability control with dynamic balancing into a single  compact housing, eliminating material installation  and commissioning costs of separate balancing  components. These ANSI 250 rated valves are well  suited for the higher flow and pressure requirements  of larger buildings.

Kele Description

2.5IN,FLG ANSI 125,81.33GPM,PICV,LOW,NO,24VAC,FLTG;MOD;ON/OFF

Manufacturer

Bray
