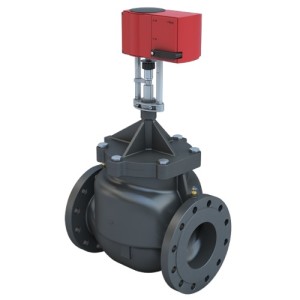

SSM-10-A-L-1020/GA24-562-A | Bray | Control Valves
Simple Set Max 10" Flanged, ANSI 125, 1020 GPM Pressure Independent Control Valve, Max 116 PSI close-Off, Normally Open, Pic and Globe Valve Linear Actuator 24AC/DC, On/off, Floating, and modulating, 562 lb-in, IP66, Non-Spring Return, with Auxiliary Switch
Brand:Bray
MPN:SSM-10-A-L-1020/GA24-562-A
SKU:SSM-10-A-L-1020/GA24-562-A
List Price:
$59,900.00
Today's Price:
$31,148.00
Log in for customized pricingproduct specifications
Torque
562 in-lb
Type
Assembly
Close Off Pressure
116 psi
Actuator Type
Non-Spring Return
Medium
Water/Glycol
Housing
Weather Shield
Valve Type
Pressure Independent
Supply Voltage (Nominal)
24 VAC
Pattern
2-way
Size
10 in
Actuator Power Type
Electric
Fail Position
Last
With Auxiliary Switch
Yes
Control Signal
Floating,Analog,Two Position
product series features
- Cast/Ductile Iron housing with Stainless Steel flow regulation unit
- Low pressure drop
- Easily adjustable flow rates and actuator characteristics
- No minimum straight pipe lengths required upstream or downstream of the valve
more information & related documents
Series Description
The Bray Simple Set Max is a flanged pressure independent control (PIC) valve designed for a wide variety of hot water and chilled water control applications. The SSM Series combines high rangeability control with dynamic balancing into a single compact housing, eliminating material installation and commissioning costs of separate balancing components. These ANSI 250 rated valves are well suited for the higher flow and pressure requirements of larger buildings.
Kele Description
10IN,FLG ANSI 125,1020GPM,PICV,LOW,NO,24VAC,FLTG;MOD;ON/OFF,AUX SW;ENC TS;TIME OUT
Manufacturer
Bray
Related Documents
Bray Commercial GAS Series Submittal
