SS-2-N-H-79C/GASEX24-450 | Bray | Control Valves

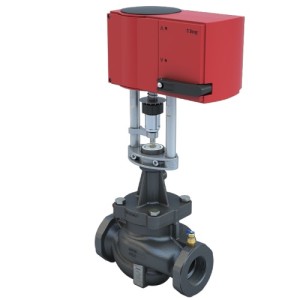

Simple Set 2" High Flow NPT Threads 79.1 GPM, Normally Closed Pressure Independent Control Valve, Max 116 PSI Close-Off, Normally Closed, Pic and Globe Valve Linear Actuator 24AC/DC, On/off, Floating, and modulating, 450 lb-in, IP66, spring return -down, shaft Normally Extended

Brand:Bray

MPN:SS-2-N-H-79C/GASEX24-450

SKU:SS-2-N-H-79C/GASEX24-450

List Price:

$7,684.00

Today's Price:

$3,995.68

Lead time of > 15 days. Chat with Kele experts now

product specifications

Options

Enclosed Terminal Strip,Manual Override Handwheel

Torque

450 in-lb

Type

Assembly

Connection

NPT Threaded

Close Off Pressure

58 psi

Actuator Type

Spring Return

Medium

Water/Glycol

Valve Type

Pressure Independent

Enclosure Rating

IP66,NEMA 4

Supply Voltage (Nominal)

24 VAC

Pattern

2-way

Size

2 in

Actuator Power Type

Electric

Fail Position

Closed

Control Signal

Floating,Analog,Two Position

product series features

Brass Housing with High Flow Cavity
Low Pressure Drop
Long Stroke
No minimum straight pipe lengths required before or after the valve

more information & related documents

Series Description

The Bray Simple Set is a threaded pressure independent control (PIC) valve designed for  a wide variety of hot water and chilled water  control applications. The SS Series combines high rangeability control and dynamic balancing into a single compact housing, eliminating the  material, installation and commissioning costs of  a separate balancing component.

Kele Description

2IN,NPT,79.1GPM,PICV,HIGH,NC,24VAC,FLTG;MOD;ON/OFF,FC,ENC TS STRIP;TIME OUT

Manufacturer

Bray
