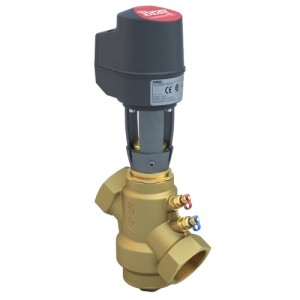

SS-2-N-H-71/PAM24-112 | Bray | Control Valves
Simple Set 2" High Flow NPT Threads 71.2 GPM Pressure Independent Control Valve, Max 116 PSI Close-Off, Normally Open, Pic Valve Linear Actuator ACT, 1.5-3"SS/SSM, auto calibrate to Valve stroke, field selectable direct or reverse acting.
Brand:Bray
MPN:SS-2-N-H-71/PAM24-112
SKU:SS-2-N-H-71/PAM24-112
List Price:
$6,460.00
Today's Price:
$3,359.20
Log in for customized pricingproduct specifications
Options
Manual Override Handwheel
Torque
112 in-lb
Type
Assembly
Connection
NPT Threaded
Close Off Pressure
58 psi
Actuator Type
Non-Fail Safe
Medium
Water/Glycol
Housing
Weather Shield
Valve Type
Pressure Independent
Supply Voltage (Nominal)
24 VAC
Pattern
2-way
Size
2 in
Actuator Power Type
Electric
Fail Position
Last
With Auxiliary Switch
Yes
Control Signal
Floating,Analog,Two Position
product series features
- Brass Housing with High Flow Cavity
- Low Pressure Drop
- Long Stroke
- No minimum straight pipe lengths required before or after the valve
more information & related documents
Series Description
The Bray Simple Set is a threaded pressure independent control (PIC) valve designed for a wide variety of hot water and chilled water control applications. The SS Series combines high rangeability control and dynamic balancing into a single compact housing, eliminating the material, installation and commissioning costs of a separate balancing component.
Kele Description
2IN,NPT,71.2GPM ,PICV,HIGH,NO, 24VAC,FLTG;MOD;ON/OFF
Manufacturer
Bray
PA24-27 IOM
