SS-125-N-S-13.2/PA24-27-FS | Bray | Control Valves

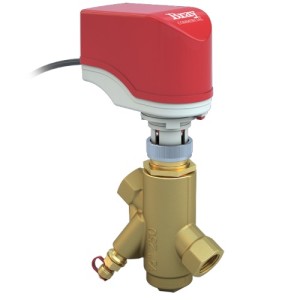

Simple Set 1.25" NPT Threads 13.21 GPM Pressure Independent Control Valve, Max 58 PSI Close-Off, Normally Open, Pic Valve Linear Actuator 100N-250N, 24V ON/OFF FS, auto calibrate to Valve stroke, field selectable direct or reverse acting.
Brand:Bray
MPN:SS-125-N-S-13.2/PA24-27-FS
SKU:SS-125-N-S-13.2/PA24-27-FS
List Price:
$1,785.00
Today's Price:
$928.20
Log in for customized pricingproduct specifications
Options
Manual Override Handwheel
Torque
27 in-lb
Type
Assembly
Connection
NPT Threaded
Close Off Pressure
58 psi
Actuator Type
Fail Safe
Medium
Water/Glycol
Housing
Weather Shield
Valve Type
Pressure Independent
Enclosure Rating
IP54,NEMA 3R
Supply Voltage (Nominal)
24 VAC
Pattern
2-way
Size
1-1/4 in
Actuator Power Type
Electric
Fail Position
Open
Control Signal
Floating,Two Position
product series features
- Brass Housing with High Flow Cavity
- Low Pressure Drop
- Long Stroke
- No minimum straight pipe lengths required before or after the valve
more information & related documents
Series Description
The Bray Simple Set is a threaded pressure independent control (PIC) valve designed for a wide variety of hot water and chilled water control applications. The SS Series combines high rangeability control and dynamic balancing into a single compact housing, eliminating the material, installation and commissioning costs of a separate balancing component.
Kele Description
1.25IN,NPT,13.21GPM,PICV,S CARTRDG,NO,24VAC,FLTG;ON/OFF,FO
Manufacturer
Bray
Bray Commercial SS Series IOM
