Z2050QPT-F+CQB24-3 | Belimo | Control Valves

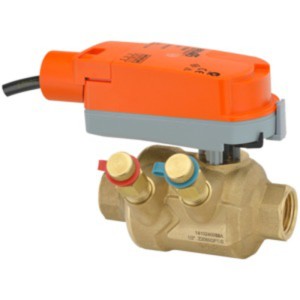

Pressure Independent Valve, 2-Way, 1/2 in, Equal Percentage Flow, Female NPT Threaded Connection, 4.3 gpm, 200 psi Close-Off Pressure, Stainless Steel Trim, Electric Actuator,24 V, Non-Spring Return, On/Off, Floating, includes 22 GA Plenum Cable, 3ft, with 1/2 in NPT Conduit Connector
Brand:Belimo
MPN:Z2050QPT-F+CQB24-3
SKU:Z2050QPT-F+CQB24-3
List Price:
$615.00
Today's Price:
$319.80
Log in for customized pricingproduct specifications
Controllable Flow Range
75°
Power Supply
24 VAC,24 VDC
Type
Assembly
Humidity
5 to 95% RH non condensing (EN 60730-1)
Position Indication
pointer
Leakage
0%
Quality Standard
ISO 9001
Seat
Teflon® PTFE
Power Supply Type
24V
Servicing
maintenance free
Power Consumption Running
0.3 W
Power Consumption Holding
0.2 W
Running Time
75 seconds
Stem
stainless steel
Unit of Measure
PC
Service
chilled, hot water, up to 60% glycol
Transformer Sizing
0.6 VA (class 2 power source)
Storage Temperature Range
-40 to 176 °F (-40 to 80 °C)
Enclosure Rating
NEMA 2
Actuator Series
CQ
Ambient Temperature Range
35 to 104 °F (1.7 to 40 °C)
Application Type
Water
Angle of Rotation
90°
Agency Listings
cULus acc. to UL60730-1A/-2-14, CAN/CSA E60730-1:02, CE acc. to 2004/108/EC and 2006/95/EC
Ball
stainless steel
Body
forged brass
Characterized Disc
incorporated into the ball
Electrical Connection
3 ft [1 m], 18 GA plenum cable with 1/2” conduit connector
Fitting Valve
Z2050QPT-F
Flow Characteristic Type
Equal Percentage
End Fitting
NPT female ends
Fitting Actuator
CQB24-3
Fail-Safe
Non-Spring Return
Supply Voltage (Nominal)
24 VAC
Trim Material
Brass
Pattern
2-way
Size
1/2 in
GPM
4.3 GPM
Control Signal
Two Position,Floating
product series specifications
VALVE SPECIFICATIONS:
Size: 1/2"
Connections: NPT female ends
Flow Characteristic: Equal percentage
Leakage:0%
Maximum Closeoff Pressure: 100 psi
Maximum Pressure Rating: 360 psi
Differential Pressure: 5-50 psid
Pressure/Temperature Port (PT Port):2 1/4" Brass with cap built-in (Hi/Lo)
Materials Of Construction:
Body: Forged Brass; Ball: Stainless Steel; Stem:Stainless Steel; Stem Packing: EPDM (lubricated); Seats: Teflon® PTFE; O-rings: PTFE; Seat O-rings: EPDM; Spring: Stainless Steel
Media Compatibility: Chilled or hot water, 60% Glycol
Media Temperature Range: 36° to 212°F (2° to 100°C)
ACTUATOR SPECIFICATIONS:
Voltage Supply:
CQB24, CQKB24: 24 VAC ± 20%, 50/60Hz, 24 VDC ± 10%
CQBUP: 100 to 240 VAC ± 10% / -15%, 50/60Hz
Supply Current:CQB24: 0.6 VA; CQKB24: 5 VA; CQBUP: 2 VA
Power Consumption:CQB24: 0.3 W running, 0.2 W holding; CQKB24: 2.5 W running, 0.5 W holding; CQBUP: 1.0 W running, 0.7 W holding
Control Type:
3: On/Off, Floating Point
SR: Proportional, 2-10VDC with Adaptive Stroke
Manual Override: Use actuator to turn valve stem
Electrical Connection: 3ft. (1m) cable with 1/2" conduit fitting
Operating Temperature: 35° to 104°F (1.7° to 40°C)
Operating Humidity: 5 to 95% RH non-condensing
Weight: 0.4 lbs (0.2 Kg) (Assembled)
Approvals: UL File #E60730, CE
Warranty: 5 Years
product series features
- Compensates for pressure variations to maintain system performance at varying loads
- Predictable flow throughout valve travel provides favorable energy savings
- Helps to maintain desired delta T and reduces additional chiller staging
- Constant flow performance reduces actuator movement and hunting to extend actuator life
- Valve is sized based on coil flow rate (GPM) which simplifies valve selection and saves time without calculations
- Small (compact) size for tight spaces
more information & related documents
Series Description
The Belimo PIQCV Series valves combine a differential pressure regulator with a 2-way characterized control valve to supply a specific flow rate regardless of system pressure fluctuations. The PIQCV Series offers all the advantages of the PICCV series but in an ultra compact configuration. The valve performs the function of a balancing valve and a control valve in one unit. PIQCV valves can be used to regulate flow through air handling unit heating and cooling coils, fan coil units, unit ventilators and VAV reheat coils.
Kele Description
PRESSURE INDEPENDENT VLV ASMBLY, 2-WAY, 1/2 IN, (F)NPT, 4.3 GPM, 24V, NSR, ON/OFF, FLOATING
Manufacturer
Belimo
ZoneTight Valve Tech Doc
