P2200S-563+ARX24-EP | Belimo | Control Valves
Pressure Independent Valve, 2-Way, 2 in, Equal Percentage Flow, Female NPT Threaded Connection, 76.1 gpm, 200 psi Close-Off Pressure, Stainless Steel Trim, Electric Actuator,24 V, Non-Spring Return, MFT/Programmable MP-Bus Communication
Brand:Belimo
MPN:P2200S-563+ARX24-EP
SKU:P2200S-563+ARX24-EP
List Price:
$-.--
Today's Price:
$-.--
Log in for customized pricingproduct specifications
Type
Assembly
Connection
NPT
Actuator Type
Electric
Valve Type
Pressure Independent
Fail-Safe
Non-Spring Return
Supply Voltage (Nominal)
24 VAC
Trim Material
Stainless Steel
Pattern
2-way
Size
2 in
GPM
56.3 GPM
Control Signal
Analog
product series specifications
Fluid: chilled or hot water, up to 60% glycol max
Body Pattern: 2-Way
Size: 1/2 - 6 in
Flow Range: 1.65 - 713 GPM
Pressure Rating:
Blank = ANSI 125
-250 = ANSI 250
Power Supply: 24 VAC
product series features
- Provides constant flow regardless of pressure variations in the system.
- Maximizes chiller differential pressure, preventing energizing additional chillers due to low Delta T.
- Simplified valve sizing and selection, no Cv calculations required.
more information & related documents

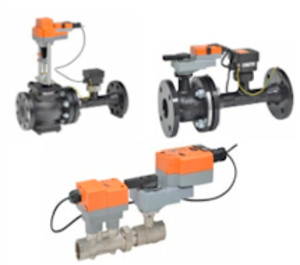

Series Description
The Belimo ePIV Electronic Pressure Independent Control Valve Series incorporates a flow meter and a 2-way control valve. The actuator has a powerful algorithm that modulates the control valve to maintain theflow regardless of variations in system differential pressure. In addition, the ePIV provides feedback as a 0-10 VDC or 2-10 VDC to the building management system. Depending on the system requirement, this feedback can be configured to be either True Flow or Valve Position using the PC-Tool software.
Kele Description
PRESSURE INDEPENDENT VLV ASMBLY, 2-WAY, 2 IN, FEMALE NPT, 76.1 GPM, 24 V, NSR, MFT/PROGRAMMABLE
Manufacturer
Belimo
ePIV Small Instruction Sheet
