P2100SU-182+LRX24-EP2-MOD | Belimo | Control Valves
EPIV, 1", 2-WAY, 18.2
Brand:Belimo
MPN:P2100SU-182+LRX24-EP2-MOD
SKU:P2100SU-182+LRX24-EP2-MOD
product specifications
Type
Assembly
Connection
NPT
Actuator Type
Electric
Valve Type
Pressure Independent
Fail-Safe
Non-Spring Return
Supply Voltage (Nominal)
24 VAC
Trim Material
Stainless Steel
Pattern
2-way
Size
1 in
GPM
18.2 GPM
Control Signal
Communicating
product series specifications
Fluid: chilled or hot water, up to 60% glycol max
Body Pattern: 2-Way
Size: 1/2 - 6 in
Flow Range: 1.65 - 713 GPM
Pressure Rating:
Blank = ANSI 125
-250 = ANSI 250
Power Supply: 24 VAC
product series features
- Provides constant flow regardless of pressure variations in the system.
- Maximizes chiller differential pressure, preventing energizing additional chillers due to low Delta T.
- Simplified valve sizing and selection, no Cv calculations required.
more information & related documents
Series Description

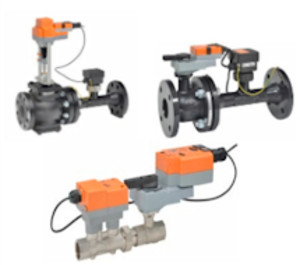

The Belimo ePIV Electronic Pressure Independent Control Valve Series incorporates a flow meter and a 2-way control valve. The actuator has a powerful algorithm that modulates the control valve to maintain theflow regardless of variations in system differential pressure. In addition, the ePIV provides feedback as a 0-10 VDC or 2-10 VDC to the building management system. Depending on the system requirement, this feedback can be configured to be either True Flow or Valve Position using the PC-Tool software.
Kele Description
EPIV, 1", 2-WAY, 18.2
Manufacturer
Belimo
ePIV Series Complete Technical Document
