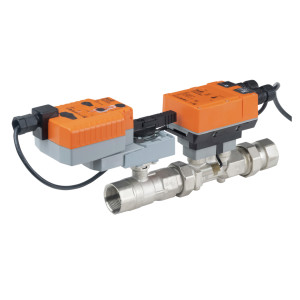

EP125+AKRX-E | Belimo | Control Valves
Pressure Independent Valve, 2-Way, 1-1/4 in, Equal Percentage Flow, Female NPT Threaded Connection, 28.5 gpm, 200 psi Close-Off Pressure, Stainless Steel Trim, Electric Actuator,24 V, Spring Return, Modulating BACnet MS/TP, Modbus RTU, MP-Bus
Brand:Belimo
MPN:EP125+AKRX-E
SKU:EP125+AKRX-E
List Price:
$2,960.00
Today's Price:
$1,539.20
Log in for customized pricingproduct specifications
Torque
180 in-lb
Type
Assembly
Connection
Threaded
Actuator Type
Electric
Fail-Safe
Electrical Fail-Safe
Supply Voltage (Nominal)
24 VAC,24 VDC
Trim Material
Stainless Steel
Pattern
2-way
Size
1-1/4 in
GPM
28.5
Control Signal
Analog,Communicating
product series specifications
Fluid: chilled or hot water, up to 60% glycol max
Body Pattern: 2-Way
Size: 1/2 - 6 in
Flow Range: 1.65 - 713 GPM
Pressure Rating:
Blank = ANSI 125
-250 = ANSI 250
Power Supply: 24 VAC
product series features
- Provides constant flow regardless of pressure variations in the system.
- Maximizes chiller differential pressure, preventing energizing additional chillers due to low Delta T.
- Simplified valve sizing and selection, no Cv calculations required.
more information & related documents
Series Description
The Belimo ePIV Electronic Pressure Independent Control Valve Series incorporates a flow meter and a 2-way control valve. The actuator has a powerful algorithm that modulates the control valve to maintain theflow regardless of variations in system differential pressure. In addition, the ePIV provides feedback as a 0-10 VDC or 2-10 VDC to the building management system. Depending on the system requirement, this feedback can be configured to be either True Flow or Valve Position using the PC-Tool software.
Kele Description
PRESSURE INDEPENDENT VLV ASMBLY, 2-WAY, 1-1/4 IN, (F)NPT, 28.5 GPM, 24V, SR, MODULATING
Manufacturer
Belimo
ePIV Series Complete Technical Document
