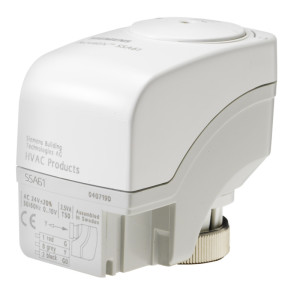

SSA61U | Siemens Industry | Control Valves
Zone Valve Electronic Actuator, 24 Vac, 0 to 10 Vdc control signal, NSR. NC
Brand:Siemens Industry
MPN:SSA61U
SKU:SSA61U
List Price:
$-.--
Today's Price:
$-.--
Availability: Part discontinued. Please contact your Kele representative at 1.877.826.9045 for replacement.
product specifications
Fail-Safe
Non-Spring Return
Supply Voltage
24 VAC
Type
Actuator Only
Control Signal
0-10 VDC
product series specifications
- Size:
- 1/2‚Ä=, 3/4‚Ä=, 1‚Ä=
- Cv Range:
- 1, 2.5, 4, 4.1, 7
- Stroke:
- 0.1" (2.5 mm)
- Body Pattern:
- 2-way, 3-way diverting
- Flow Characteristic:
- Linear
- Leakage Rating:
- ANSI Class III (0.1% of rated capacity)
- Body Rating:
- ANSI Class 125
- Media Temperature Range:
- 34° to 230‚Ñâ (1° to 110‚ÑÉ)
- Supply Voltage:
- 24 VAC ±20%, 120 VAC ±20%, 50/60 Hz
- Supply VA:
- Two-position actuators: 9.8 VA; three-position (floating) actuators: 0.8 VA; proportional (0-10 VDC) actuators: 2.5 VA
- Signal Input:
- Two-position, three-position (floating), and 0-10 VDC proportional
- Action:
- Two-way valves are stem-up-to-open; three-way valves are diverting; normal position is determined by choice of actuator
- Stroke Time:
- Two-position actuators: 35 seconds; three-position (floating) actuators: 150 seconds; proportional (0-10 VDC) actuators: 34 seconds
- Operating Temperature:
- 41° to 122‚Ñâ (5° to 50‚ÑÉ)
- Operating Humidity:
- 0 to 90% RH non-condensing
- Enclosure Rating:
- NEMA 1 (indoor only)
- Weight:
- Two-position actuators: 1.2 lb (0.54 Kg); three-position (floating) actuators: 0.5 lb (0.25 Kg); proportional (0-10 VDC) actuators: 0.5 lb (0.25 Kg)
- Approvals:
- CE, EMC directive 89/336/EEC, 73/23/EEC low voltage; UL FIle #E220114,
- Warranty:
- 2 years
product series features
- Direct-coupled universal bonnet
- Direct-coupled installation without tools
- Manual override with 3mm hex wrench
- Visual position indication
more information & related documents
Series Description
The Siemens 599 Series zone valves work with any SFA/P Series or SSA/P Series electric actuator. The actuators provide two-position, three-position, or 0-10 VDC control. Typical applications include hot or chilled water for zones with radiators, floor heating via manifolds, fan coil units, cooling ceilings, wall-mounted boilers, and VAV applications.
Kele Description
NSR,0-10VDC NC,24VAC
