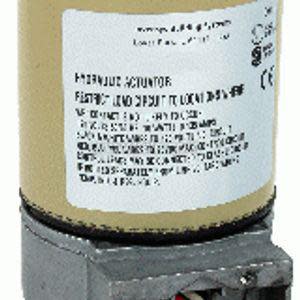

Beige cylindrical actuator with printed label and a grey square base housing connections

MP-5230 | Schneider Electric Buildings | Control Valves

Act (MP-5230): Elec/Hyd, Prop, 3-12 VDC, SR, 120 VAC, App, 1.86 in-lb, Linear, N1, Erie

Brand:Schneider Electric Buildings

MPN:MP-5230

SKU:MP-5230

List Price:

$4,450.00

Today's Price:

$2,314.00

product datasheet

installation instructions

catalog page

Lead time of 7 days. Chat with Kele experts now

product specifications

Torque

1.86 in-lb

Type

Actuator Only

Actuator Type

Electronic Hydraulic

Fail-Safe

Spring Return

Supply Voltage (Nominal)

120 VAC

Pattern

2-way,3-way

Size

1/2 to 2 in

Control Signal

Analog

product series specifications

Supply Voltage: Mx(41, 51, 61) 24V (AC/DC)

Supply Voltage: MF-22303 24 VAC, 1.5 VA

Input Impedance: MS41-7153/AV-609-1 80 kΩ @ 0/2-10 VDC; 500Ω @ 4-20 mA

Conduit Connection: 1/2" FNPT

Wiring: MF-22303: 48" (122 cm) 18 AWG plenum cable rated for UL; Mx51-7103: 36" (91 cm) plenum cable; Mxxx-7203: 36" (91 cm) appliance cable; Mx41-7153: 36" (91 cm) cable, 18 AWG

Enclosure Rating: NEMA 1 (IP31)

Feedback: MF51, MS51, MS41: 2-10 VDC

Manual Override: Crank

Operating Temperature: MF-22303 40° to 281°F (4° to 138°C); Mx51-7103, Mx41: -22° to 140°F (-30° to 60°C); Mx51-7203, Mx61-7203: 0° to 140°F (-18° to 60°C)

Operating Humidity: 5% to 95% RH non-condensing

Weight: MF-22303 1.5 lb (.68 kg); Mxxx-7102, -7203 4.3 lb (1.9 kg); Mx41-7153/AV-609 7.5 lb (3.4 kg)

Approvals: MF-22303: UL 873, File E9429; cUL, C22.2 No. 24-93; CE EMC Directive 89/336/ EEC

Mx51, Mx61: UL 873, File E9429; cUL, C22.2 No. 24-93; CE EMC Directive 89/336/ EEC

Mx41-7153: UL, CE, cUL

Warranty: MF-22303: 2 years; All others 5 years

product series features

Direct-mount, integral linkage (SR models)
Wide selection of control signal inputs
Rugged design, reliable performance
Spring or non-spring return models

more information & related documents

Series Description

The Schneider Electric SmartX Series linear globe valve actuators are designed to mount directly onto VB-7000 and VB-8000 Series 2-way globe valves or 3-way globe valves. Each globe valve actuator features integral linkage to provide linear travel. These actuators are available in a wide selection of spring and non-spring return models. Schneider Electric SmartX Series linear globe valve actuators are intended for use in Building Automation Systems, BAS, and HVAC applications.

Kele Description

HYD ACT 120V

Manufacturer

Schneider Electric Buildings
