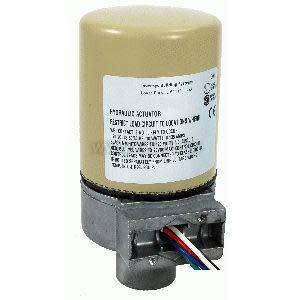

Beige cylindrical actuator mounted on a grey metal base with four colored wires emerging

MA-5210-500 | Schneider Electric Buildings | Control Valves

Act (MA-5210-500): Elec/Hyd, 2Pos, SR, 120 VAC, App, 20 in-lb, Linear, SPDT, N1, Erie

Brand:Schneider Electric Buildings

MPN:MA-5210-500

SKU:MA-5210-500

product datasheet

catalog page

This item has been discontinued and is no longer available for purchase.

Need assistance? Call 877.826.9045 or for replacement options.

Call 877.826.9045 or for pricing

product specifications

Torque

20 in-lb

Type

Actuator Only

Connection

NPT

Actuator Type

Electric

34 CV

Fail-Safe

Spring Return

Supply Voltage (Nominal)

120 VAC

Pattern

2-way,3-way

Size

1-1/4 in

Control Signal

Two Position

product series specifications

Supply Voltage: Mx(41, 51, 61) 24V (AC/DC)

Supply Voltage: MF-22303 24 VAC, 1.5 VA

Input Impedance: MS41-7153/AV-609-1 80 kΩ @ 0/2-10 VDC; 500Ω @ 4-20 mA

Conduit Connection: 1/2" FNPT

Wiring: MF-22303: 48" (122 cm) 18 AWG plenum cable rated for UL; Mx51-7103: 36" (91 cm) plenum cable; Mxxx-7203: 36" (91 cm) appliance cable; Mx41-7153: 36" (91 cm) cable, 18 AWG

Enclosure Rating: NEMA 1 (IP31)

Feedback: MF51, MS51, MS41: 2-10 VDC

Manual Override: Crank

Operating Temperature: MF-22303 40° to 281°F (4° to 138°C); Mx51-7103, Mx41: -22° to 140°F (-30° to 60°C); Mx51-7203, Mx61-7203: 0° to 140°F (-18° to 60°C)

Operating Humidity: 5% to 95% RH non-condensing

Weight: MF-22303 1.5 lb (.68 kg); Mxxx-7102, -7203 4.3 lb (1.9 kg); Mx41-7153/AV-609 7.5 lb (3.4 kg)

Approvals: MF-22303: UL 873, File E9429; cUL, C22.2 No. 24-93; CE EMC Directive 89/336/ EEC

Mx51, Mx61: UL 873, File E9429; cUL, C22.2 No. 24-93; CE EMC Directive 89/336/ EEC

Mx41-7153: UL, CE, cUL

Warranty: MF-22303: 2 years; All others 5 years

product series features

Direct-mount, integral linkage (SR models)
Wide selection of control signal inputs
Rugged design, reliable performance
Spring or non-spring return models

more information & related documents

Series Description

The Schneider Electric SmartX Series linear globe valve actuators are designed to mount directly onto VB-7000 and VB-8000 Series 2-way globe valves or 3-way globe valves. Each globe valve actuator features integral linkage to provide linear travel. These actuators are available in a wide selection of spring and non-spring return models. Schneider Electric SmartX Series linear globe valve actuators are intended for use in Building Automation Systems, BAS, and HVAC applications.

Kele Description

2 POS VAL ACT 120V SPDT

Manufacturer

Schneider Electric Buildings
