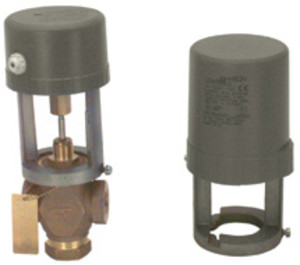

* product series image displayed

VA-7480-0312 | Johnson Controls | Control Valves

ACT/FLOATING/STANDARD/SPEED

Brand:Johnson Controls

MPN:VA-7480-0312

SKU:VA-7480-0312

List Price:

$433.00

Today's Price:

$225.16

catalog page

Lead time of 8 days. Chat with Kele experts now

product specifications

Torque

21.5 in-lb

Type

Actuator Only

Fail-Safe

Non-Spring Return

Supply Voltage (Nominal)

24 VAC

Control Signal

Floating

product series specifications

Supply Voltage: 24 VAC @ 12 VA, 50/60 Hz

Noise: 35 dBa @ 3.3 ft (1m)

Auxiliary Contacts: Two SPDT; 50 VA pilot duty @ 24 VAC; 5.8A resistive, 1/4 HP, 275 VA pilot duty @ 120 VAC (VA-4233-GGC only)

Spring Return Time: 15 seconds (VA-4233 only)

Life Expectancy: 100,000 full stroke cycles

Operating Humidity: 10% to 90% RH non-condensing

Warranty: 1 year

product series features

Direct mount to JCI Globe Valve
No separate linkages
Compact size
Simple installation and adjustment
Economical, yet powerful

more information & related documents

Series Description

The VA-7000 Series is a family of direct-mount non-spring return actuators for use with 1/2 in. to 2 in. JCI VG7000 valves suitable for a wide range of HVAC applications. They are available for three-wire floating control or proportional control. The VA-4233 Series direct-mount spring return actuators, are available for two-position, floating, or proportional control. These actuators are a popular choice for Building Automation Systems, BAS, and HVAC applications.

Kele Description

ACT/FLOATING/STANDARD/SPEED

Manufacturer

Johnson Controls
