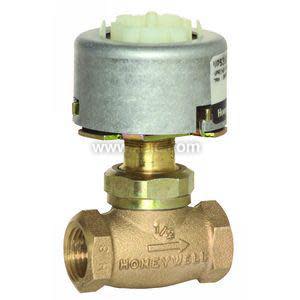

VP531C1000/U | Honeywell | Control Valves

VALVE

Brand:Honeywell

MPN:VP531C1000/U

SKU:VP531C1000

List Price:

$681.00

Today's Price:

$354.12

product datasheet

installation instructions

product specifications

Type

Valve Only

Connection

NPT

Valve Type

Unitary

1.6 CV

Trim Material

Stainless Steel

Pattern

2-way

Size

1/2 in

product series specifications

Actuator Control Type: Direct acting, rolling diaphragm type

Air Connection: Integral, for 1/4-in. (6mm) O.D. plastic tubing

Flow Characteristic: Linear and constant flow throughout plug travel

Maximum Safe Air Pressure: 30 psi (207 kPa)

Body Pressure Rating: 250 psi (1724 kPa)

Media Compatibility: Chilled or Hot Water

Controlled Medium Temperature: 30 to 250°F

Valve Size Range: 3/8", 1/2"

Close-Off Ratings: See Datasheet Chart

product series features

Small size permits installation where space is limited
Direct-acting, rolling diaphragm actuator with integral high temperature plastic air connector for 1/4-in. (6mm) O.D. plastic tubing
Spring loaded, self-adjusting Buna-N in.V in. -ring packing replaceable without shutting system down
Brass seats (lower is integral, upper is removable) and contoured plug provide metal-to-metal seating
Stainless steel stem
Linear and constant total flow throughout full plug travel.

more information & related documents

Series Description

The Honeywell VP526A Pneumatic Three-Way High Pressure Water Valve provides proportional control of hot and/or cold water in unit ventilator and fan coil systems. The pipe connections are for 45 degrees SAE flared fittings.

Kele Description

1/2" NPT,1.6 CV, 2-5 SPRING RANGE

Manufacturer

Honeywell
