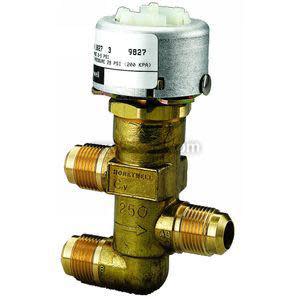

Compact motorized valve with brass body and grey actuator head

VP526A1092/U | Honeywell | Control Valves

3/8 VALVE WITH 1/2 O.D. FLARE, 1.6 CV,

Brand:Honeywell

MPN:VP526A1092/U

SKU:VP526A1092/U

List Price:

$1,127.00

Today's Price:

$586.04

product datasheet

installation instructions

Lead time of 10 days. Chat with Kele experts now

product specifications

Type

Valve Only

Connection

Flare

Valve Type

Unitary

1.6 CV

Trim Material

Stainless Steel

Pattern

3-way

Size

1/2 in OD

product series specifications

Actuator Control Type: Direct acting, rolling diaphragm type

Air Connection: Integral, for 1/4-in. (6mm) O.D. plastic tubing

Flow Characteristic: Linear and constant flow throughout plug travel

Maximum Safe Air Pressure: 30 psi (207 kPa)

Body Pressure Rating: 250 psi (1724 kPa)

Media Compatibility: Chilled or Hot Water

Controlled Medium Temperature: 30 to 250°F

Valve Size Range: 3/8", 1/2"

Close-Off Ratings: See Datasheet Chart

product series features

Small size permits installation where space is limited
Direct-acting, rolling diaphragm actuator with integral high temperature plastic air connector for 1/4-in. (6mm) O.D. plastic tubing
Spring loaded, self-adjusting Buna-N in.V in. -ring packing replaceable without shutting system down
Brass seats (lower is integral, upper is removable) and contoured plug provide metal-to-metal seating
Stainless steel stem
Linear and constant total flow throughout full plug travel.

more information & related documents

Series Description

The Honeywell VP526A Pneumatic Three-Way High Pressure Water Valve provides proportional control of hot and/or cold water in unit ventilator and fan coil systems. The pipe connections are for 45 degrees SAE flared fittings.

Kele Description

3-WAY/ UNI-WTR-VLV/1/2INOD/ 1.6CV/ 2-5PSI-SPRING

Manufacturer

Honeywell
